Nano brewing is when the brewmaster needs a small-scale brewery with a shorter brew length time between mixing the ingredients all the way through to producing the finished beer product.

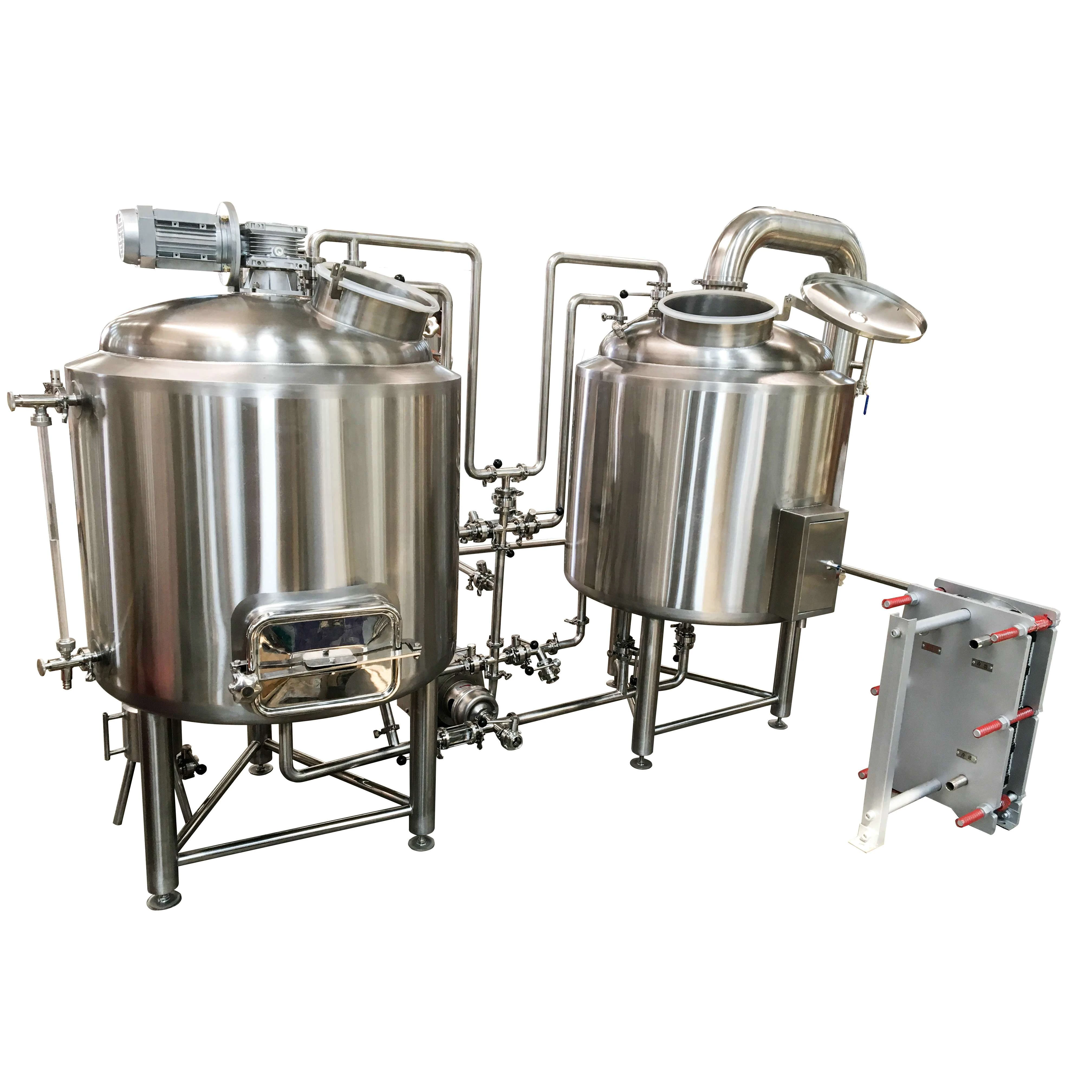

300L 2V Brew house

General description:

Capacity: 100L, 200L,300L,500L Customized

Material: SUS304,

Heating method: Electric heating, steam jacket heating or gas fired

Efficiency: 1-3 Brews per day

Basic configuration:

•  Mash / lauter tun with top or bottom blade stir, counter washing and wort collection pipes.

•  Kettle / whirlpool with tangent inlet, electric heater inside tank, steam jacket or gas chamber underneath.

•  Support fittings: double / single stage plate cooler, piping strainer, grist hydrator, wort grant tank etc

•  Standard brew house platform or customized

•  All pump with VFD

•  With hot water tank configured for sparging and mashing in etc.

•  Valves to be manual butterfly one or pneumatic

•  Piping connection to be tri-clamp or DIN.

•  Hot water tank to be 2-3 times bigger for mashing, sparging and cleaning

Features:

•  Reasonable water blending unit for temp and water amount control

•  Well sized tank diameter to guarantee right filtration are for wort extract

•  Lower energy cost and material consumption

•  Wort grant creating more buffer during lautering

•  Special tank and piping construction to avoid the wort aeration problem and decrease the material lost

•  Whole brew house unit can be installed on frame

Optional:

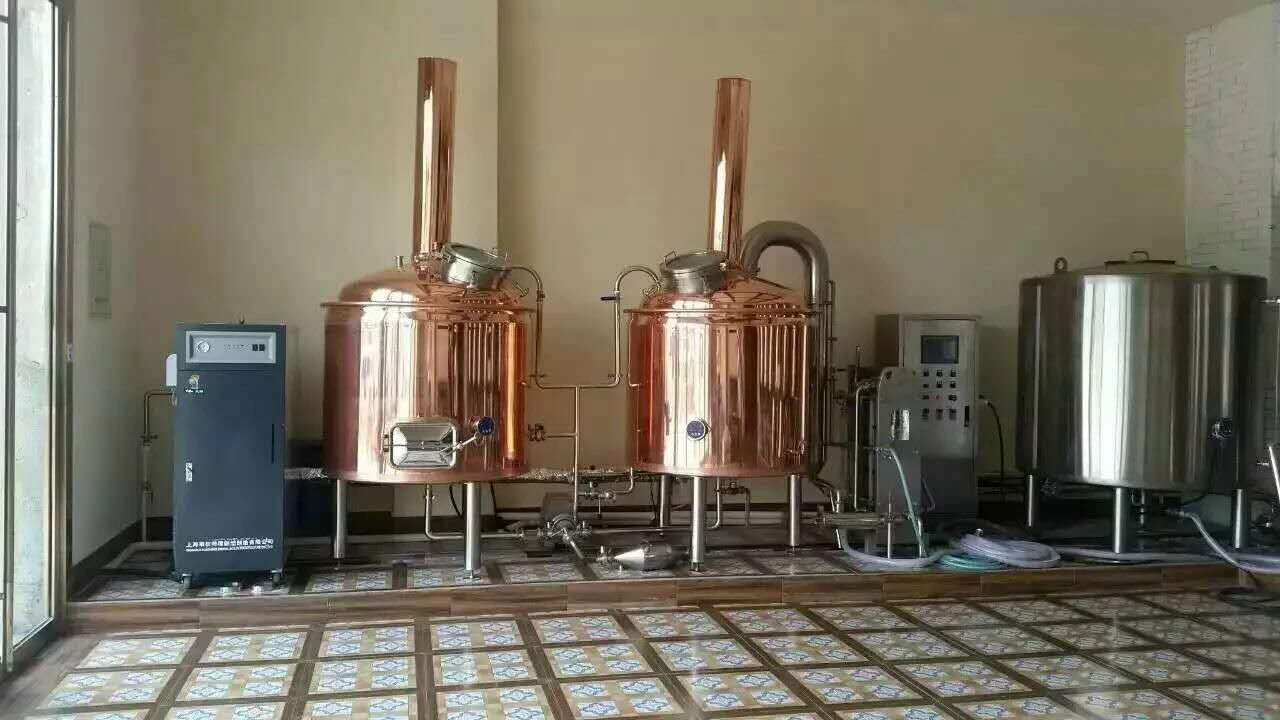

• Optional copper cladding or mirror polished outer cladding.

•  Mash / lauter tun with steam jacket for decoction brew.

We can customize design & manufacture each set beer brewing equipment according to your requirements!
