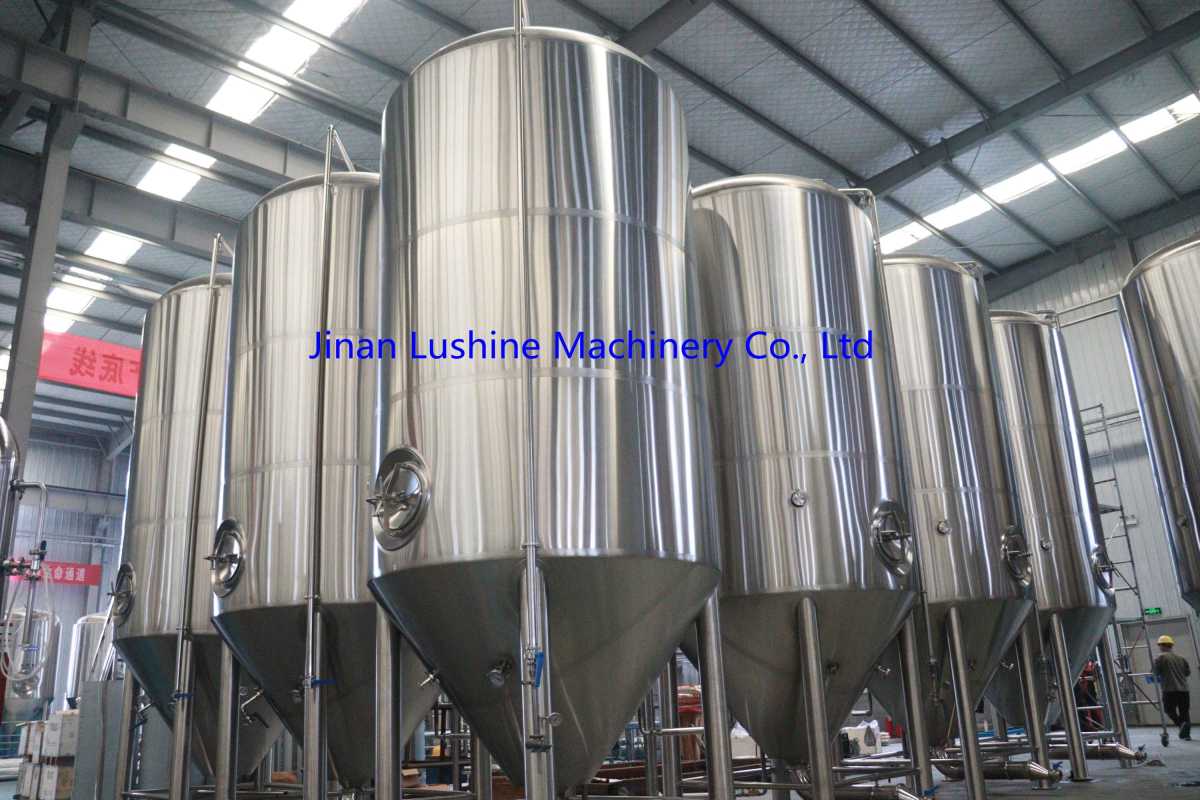

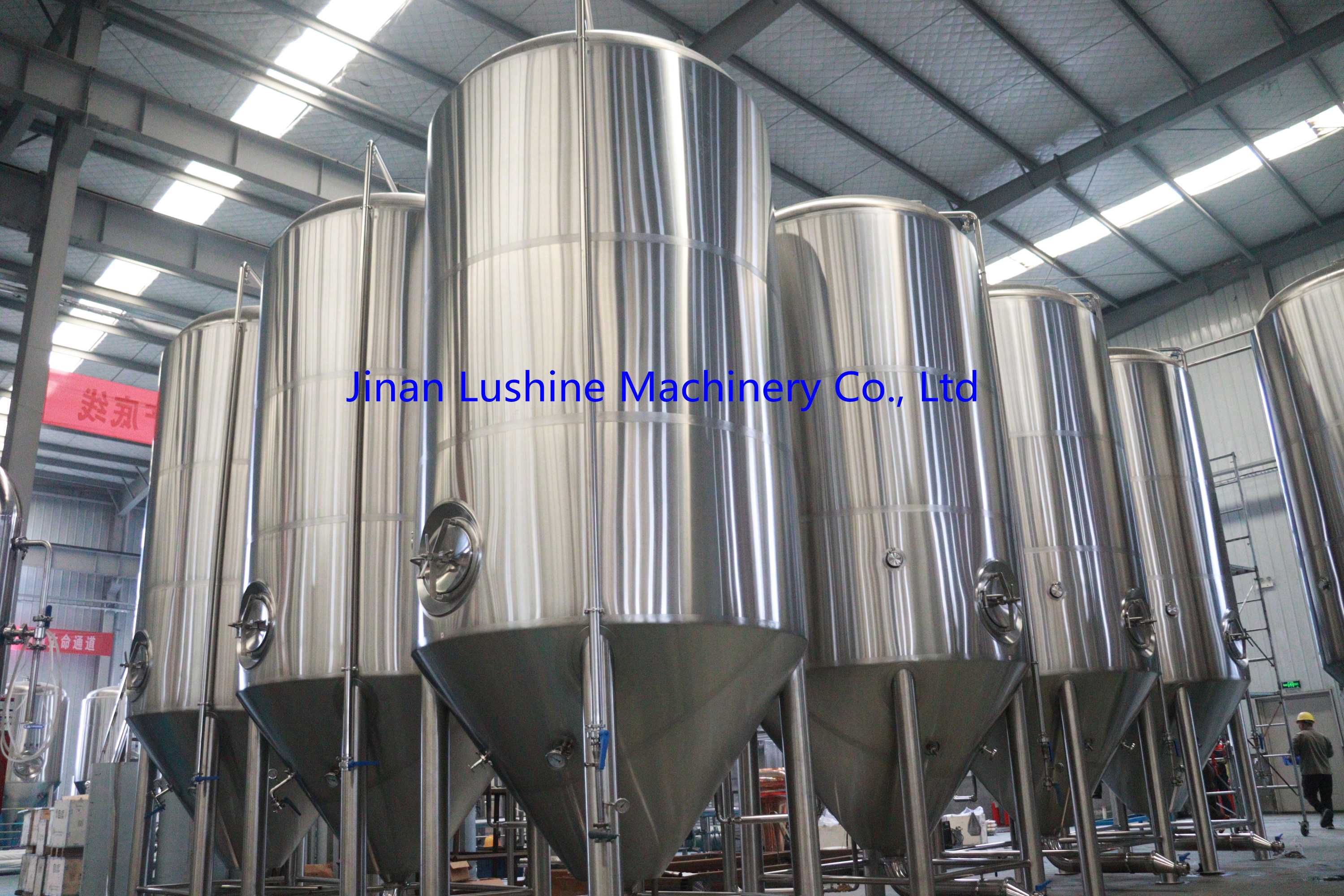

7pcs 90bbl Unitanks/Fermenters/CCT installed in USA

Name: 90BBL Fermenters installed in USA
SKU: 0

These 7pcs 90bbl fermentation tanks are located in Texas, USA. They ordered the whole sets 500Gallon &1000Gallon Distillery system with 7pcs 90bbl fermenters from us in 2024. The configuration of these fermenters is customized by their design.

The owner is very satisfy with our tanks!

Main technical Parameters as the following info:

Fermenters 90bbl

7sets

1.Sanitary Stainless steel 304, Tank out shell is brushed plate. Interior shell: SUS 304 full welded & Sanding Polished .

2-Effective volume: 90BBL; total volume: 112BBL; Slender design, Tank dimension(Outer Diameter X Height) :2200mm X 5700mm or 2260mm X 5485mm or Special size customization.

3-Dome top head, cone bottom 60degree or other degree; 4-Tank body Polyurethane insulation layer thickness: 80mm or 100mm;tank inner wall thickness 4mm, cladding thickness 2mm.

5-Side man door; working pressure is15 psi.

6-Three phase dimple plate cooling jackets, two phase cooling jackets on tank body and one on tank bottom cone; Cooling area:12 ㎡

7-With Four thermometer blind tubes. With 4" outlets on the Bottom of each fermenter.

Other fittings and valves matched.

For professional distillery solution and exactly quotation, please feel free to send inquiry below.

More clear Pictures in next pages
