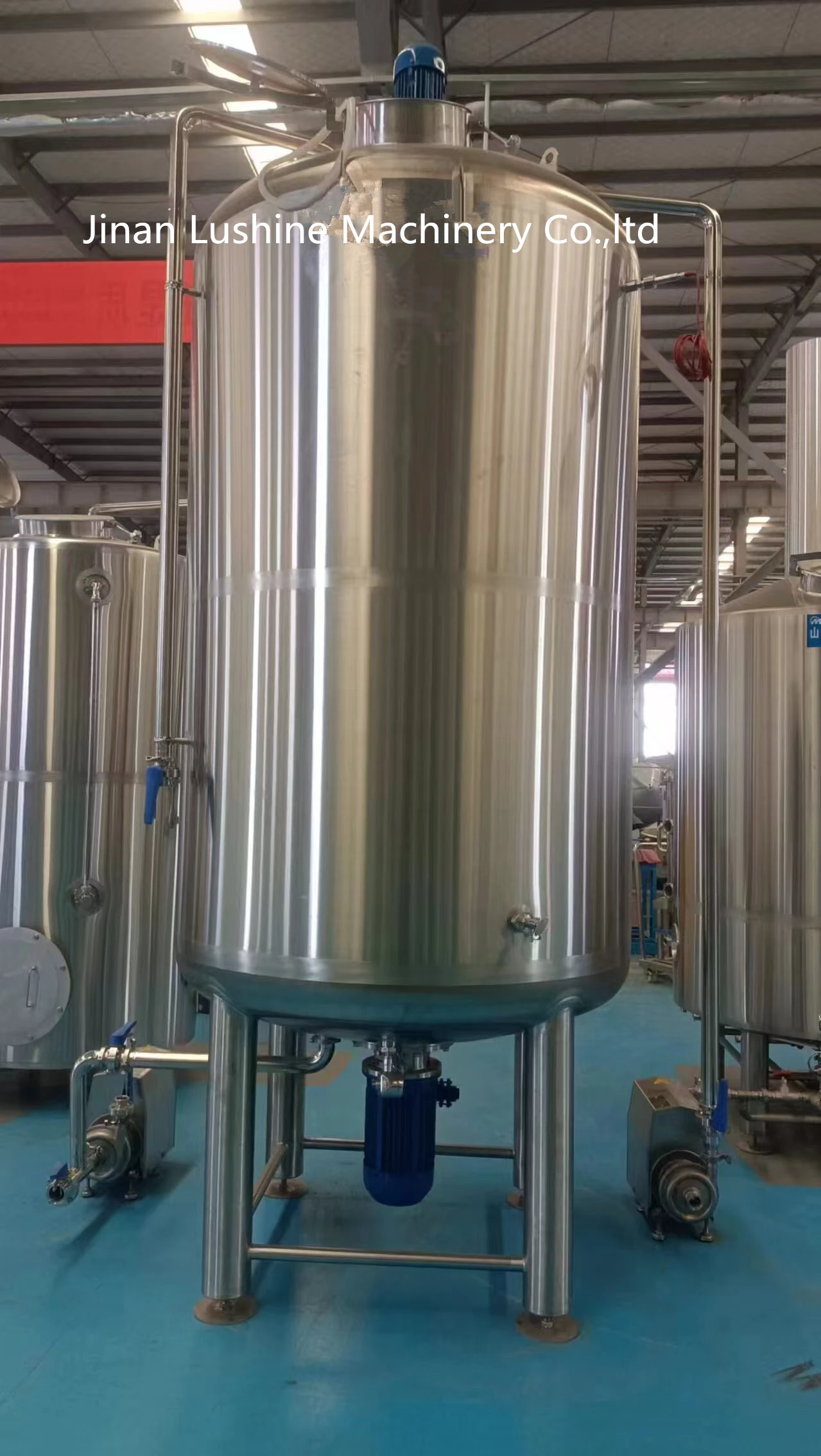

1000L Biopharmaceutical fermentation tank

This tank is normally used for the cultivation of aerobic bacteria in pharmacy.

1-Tank Material: Tank outshell :304 stainless steel, tank inner body :316L Stainless steel.

2.Effective volume1000L,

3.Double layer tank, Insulation material: polyurethane. insulation layer thickness: 80mm.

4-Dimple cooling jacket material 304SS,

5-Tank inside wall thickness 3mm, cladding thickness 2mm;

6-Top Man way/ man door, tank bottom Conical is flange connection.

7-Inner tank body mechanically polished to 0.4mm, the outer plate surface is protected, and the weld seam is sanding polished with a smooth band.

8-With Agitator/stirring motor; PT100 temperature probe,

9- With Bimetallic thermometer, mechanical pressure regulating valve;

With CIP Cleaning device, Sterile discharge port.The diameter of the Drain outlet/sewage outlet is 50mm, Top safety valve, vacuum valve, with Oxygenation port, with Sampling Port.

11-Tank support legs height is adjustable.

With all the matched valves & fittings. All parts which come into contact with the product be made of 316 stainless steel.

For more detail technical parameters as per the final production drawing.
