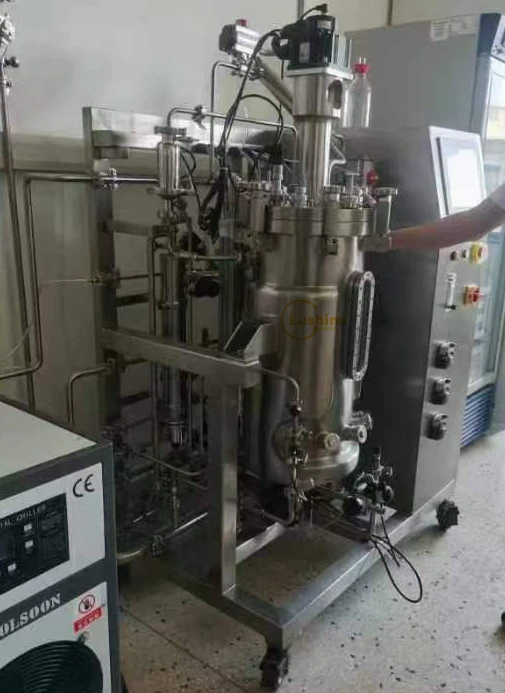

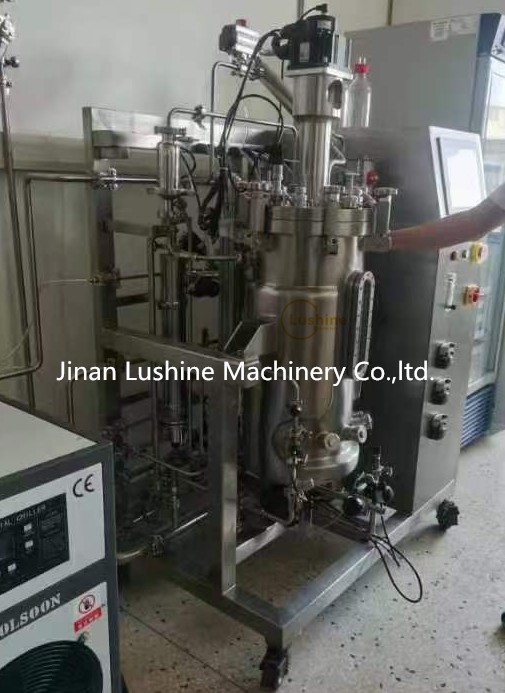

100L Biopharmaceutical fermentation tank be used for the cultivation of aerobic bacteria in pharmacy. Material ：316L & 304SS

 Fermenter body main technique parameters:

1-Tank Effective volume: 200L, total volume: 400L,Diameter-to-height ratio: 1:2; liquid filling coefficient 60~80%.

2-Tank material: 316L;Dimple cooling Jacket material: 304 stainless steel.

3-Tank design pressure: 0.15Mpa Working pressure: <0.1Mpa

Jacket design pressure: 0.25Mpa Working pressure: <0.2Mpa

4-Tank structure: There are no dead corners inside the tank, equipped with deep ventilation air pipes and gas distribution rings, and 4 removable baffles. It includes one standard port for each standard temperature, one pH and one DO sensor socket , and a dedicated sampling and discharge valve at the bottom.

5-Tank cover structure:  One material charging/inoculation port,

One antifoam electrode probe port. Two standard universal feed ports. One dedicated fermentation tank sampling/discharge pipe port, One vent port (with vent condenser) , Equipped with digital pressure display sensor; signals transmitted to PLC control system for recording.

6-Jacket Structure: Features an optimized helical baffle design to prevent uneven heat transfer or thermal short-circuiting within the jacket, enhancing heat exchange efficiency. Equipped with overpressure protection and pressure relief devices to prevent operational errors and ensure experimental safety. Includes a digital pressure display sensor; signals are fed into the PLC control system for logging.

7-Surface Finish: Internal and external surfaces mirror-polished to a surface roughness of < Ra 0.4. All welds are neat and uniform without grinding (conforming to international standards).

**Sterilization Method:** In-place automatic sterilization (SIP).

**Online Monitoring:** (Optional) Configured for real-time monitoring of tail gas CH₄, O₂, and CO₂ concentrations.

With all matched Agitating system, air filtering system, PH value detection system,Bioreactor Foam Control System ,Dissolved Oxygen (DO) etc., electric control cabinet system,all can be full-automatic control.  The matched Air compressor, steam genrator, water Chiller can be equipped.

Customized design & manufacture, Our equipment with superior quality and competitive price will be the best Choice for you, just contact us directly!
