20HL Beer Brewing system

1-Malt Mill Machine with capacity of 100kg/hr, 300kg/hr,500kg/hr,800kg/hr and 1000kg/hr,2000kg/hr, with two or four Roller-crushing style;

2-Stainless steel 304 cover of the rolling crusher and alloy adjustable roller.

3-By using the flexible auger and grist hopper, the milled malt will be transferred to the mash tun.

4- ABB Brand motor, or “UL” rated Motor.

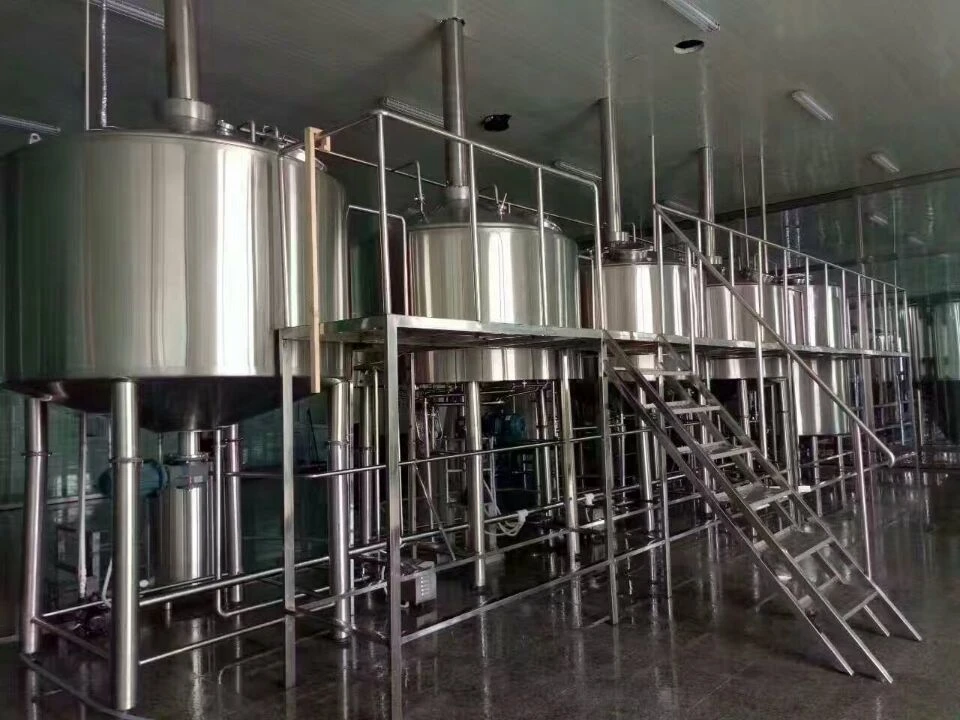

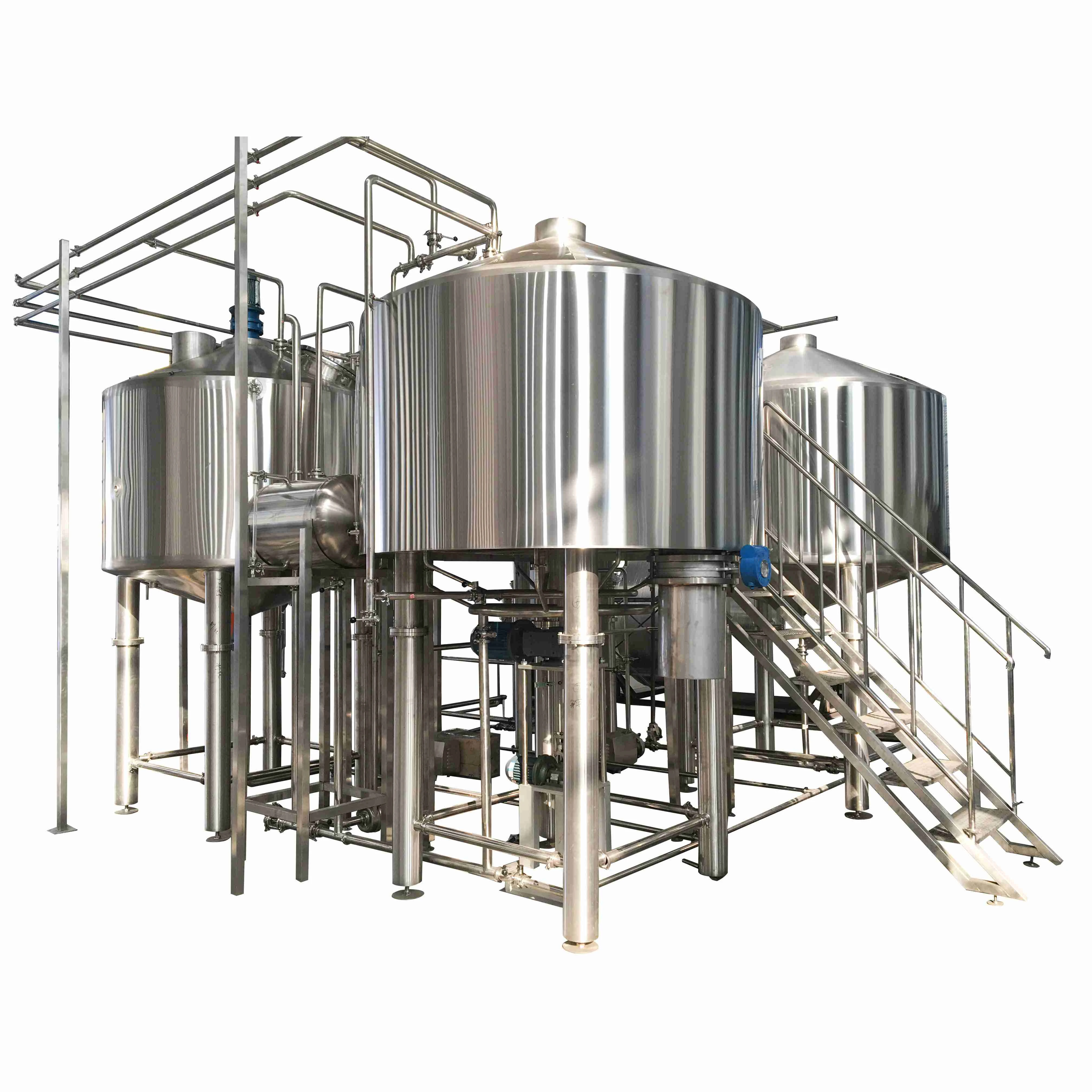

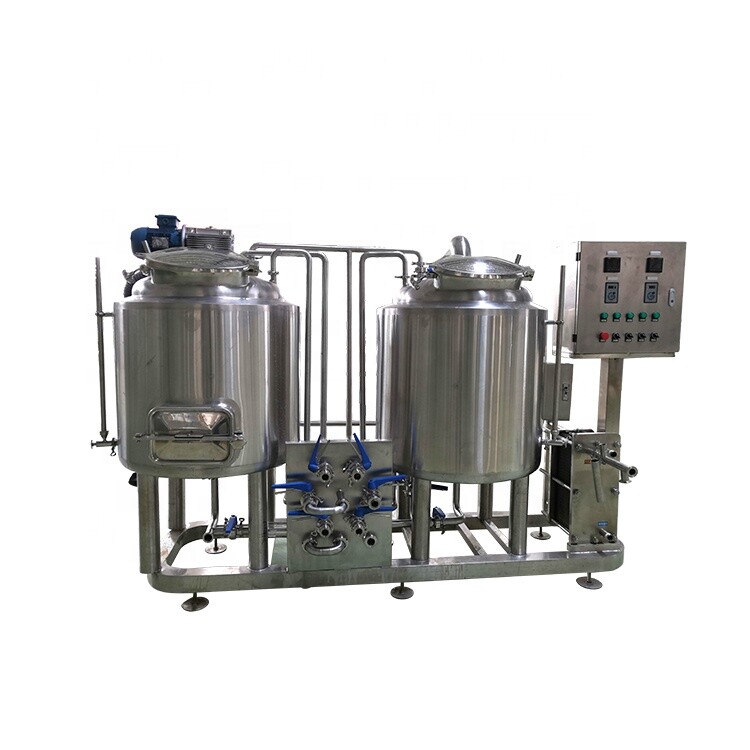

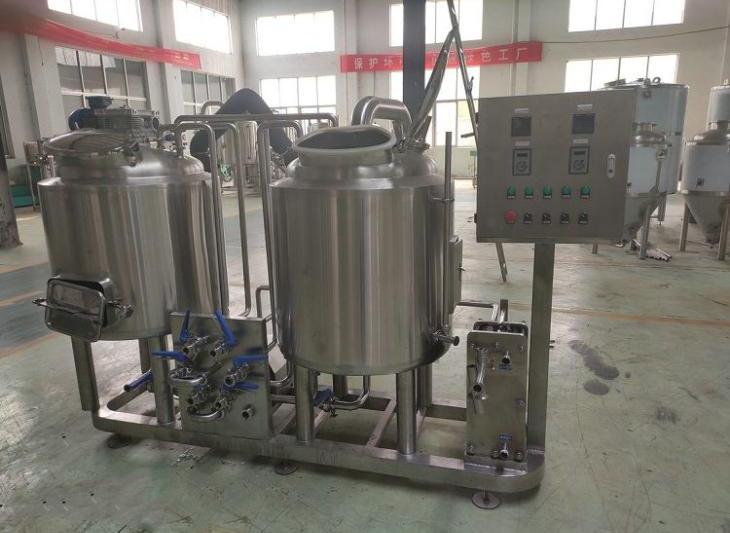

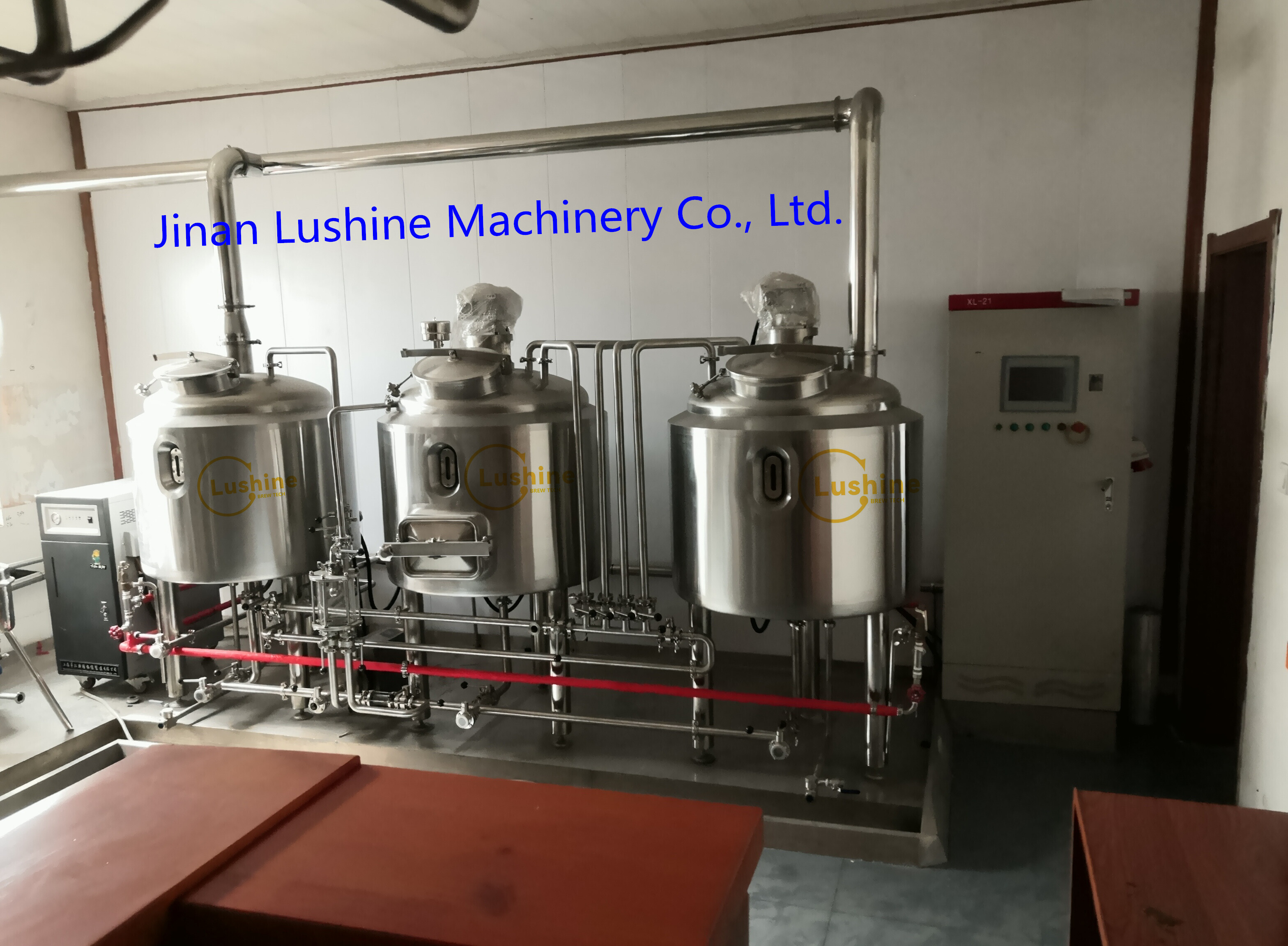

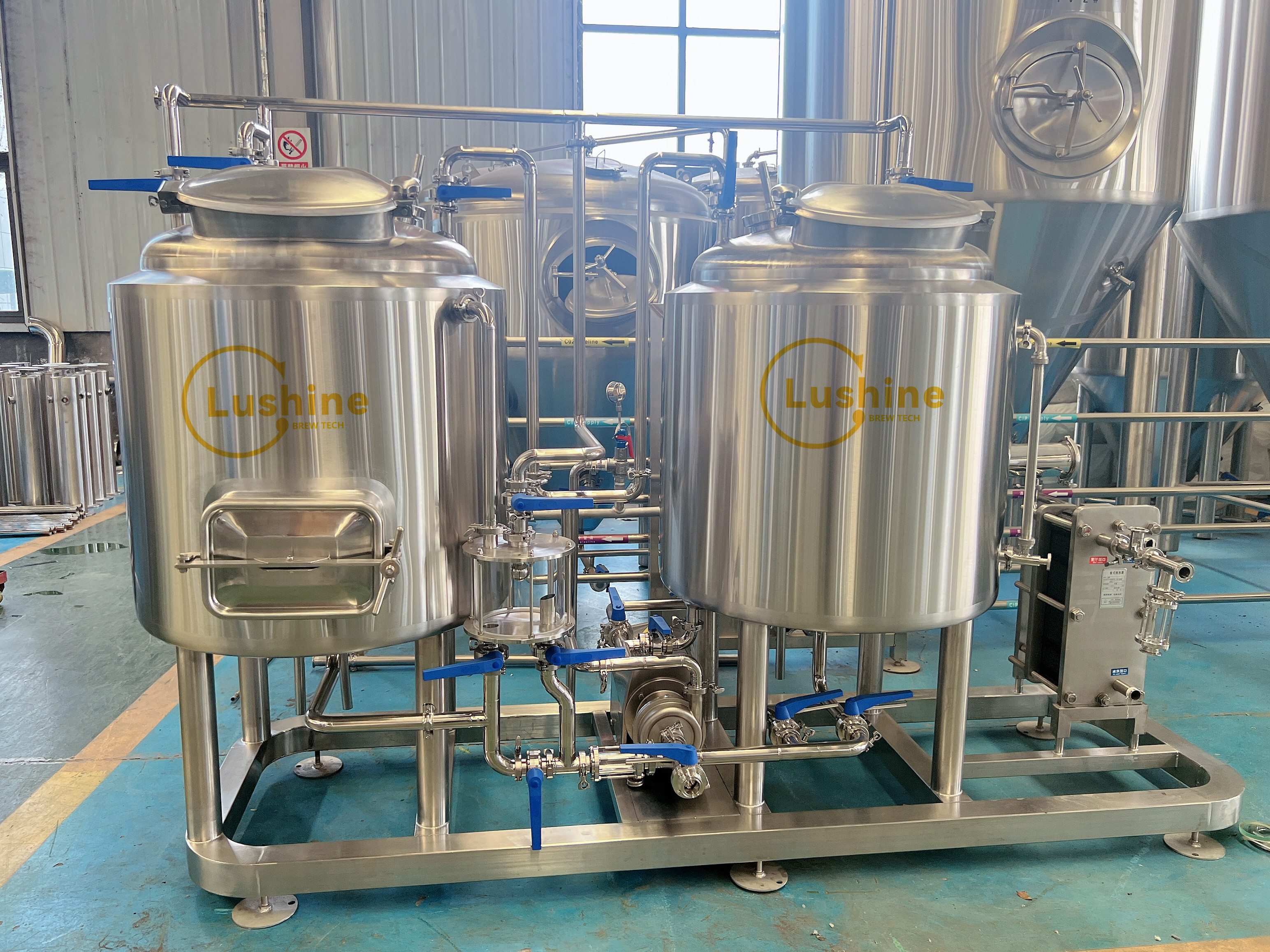

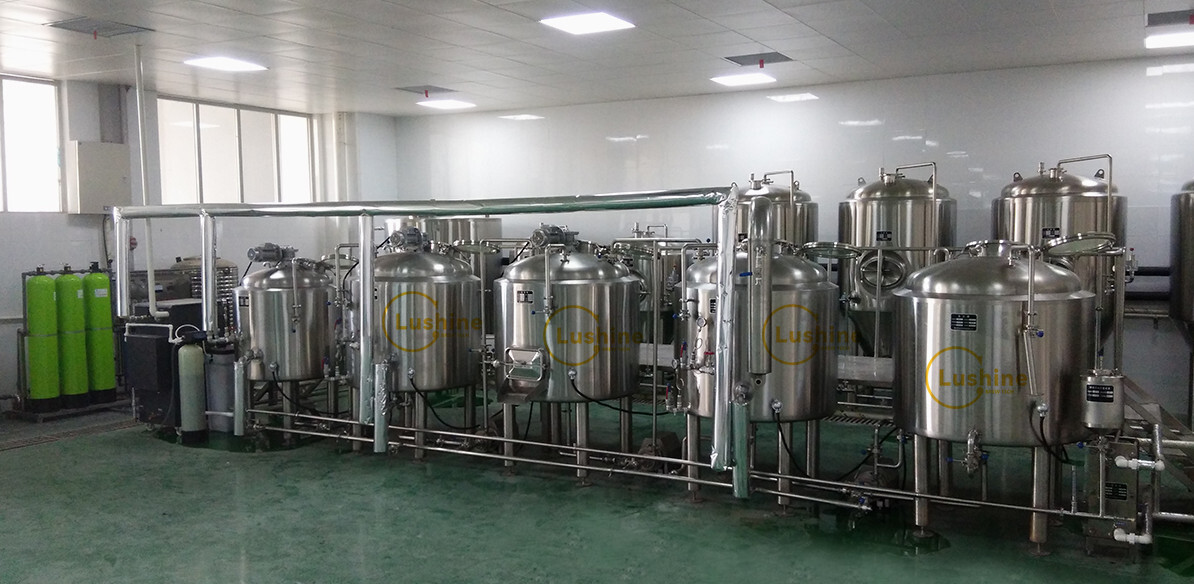

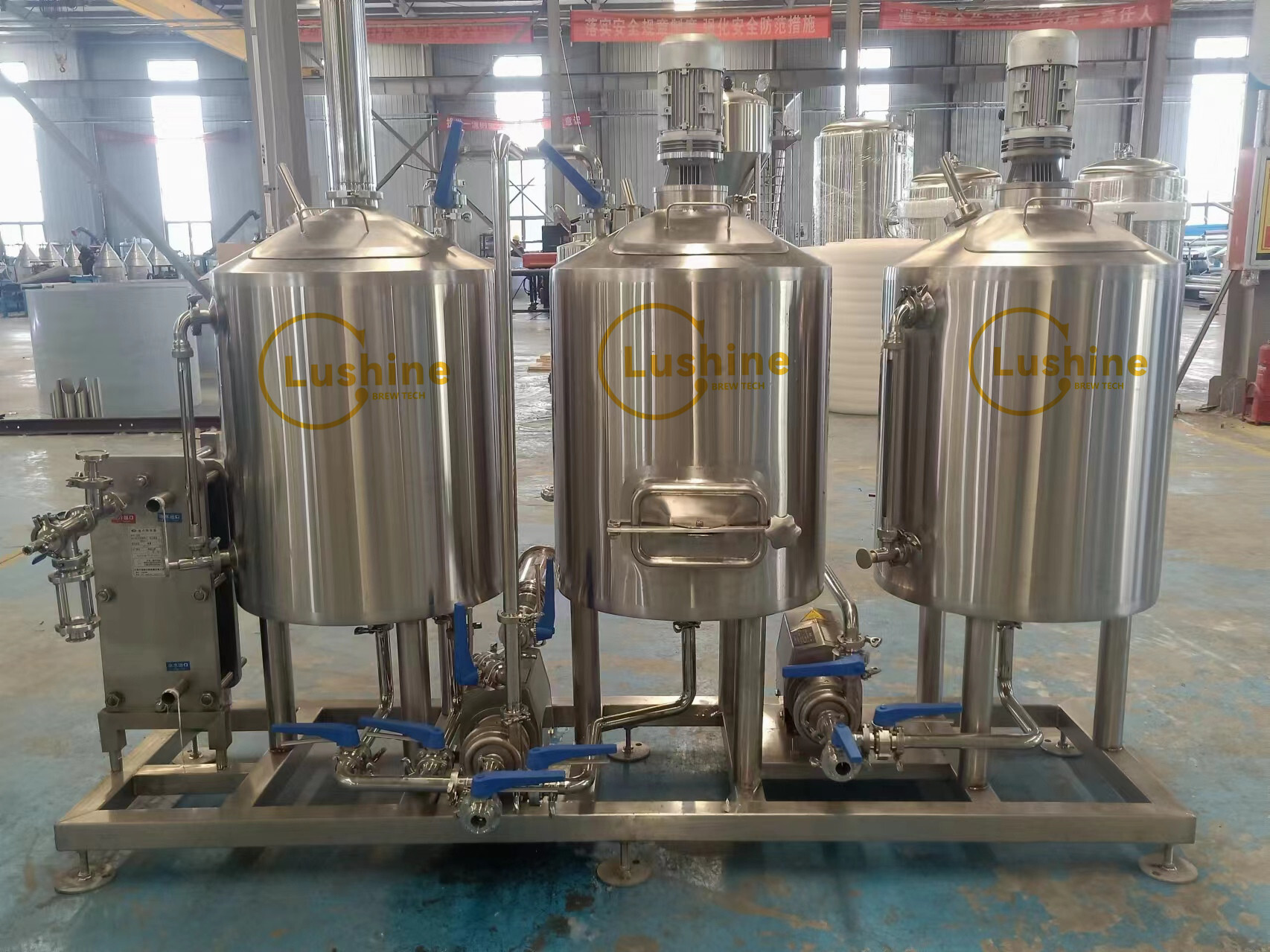

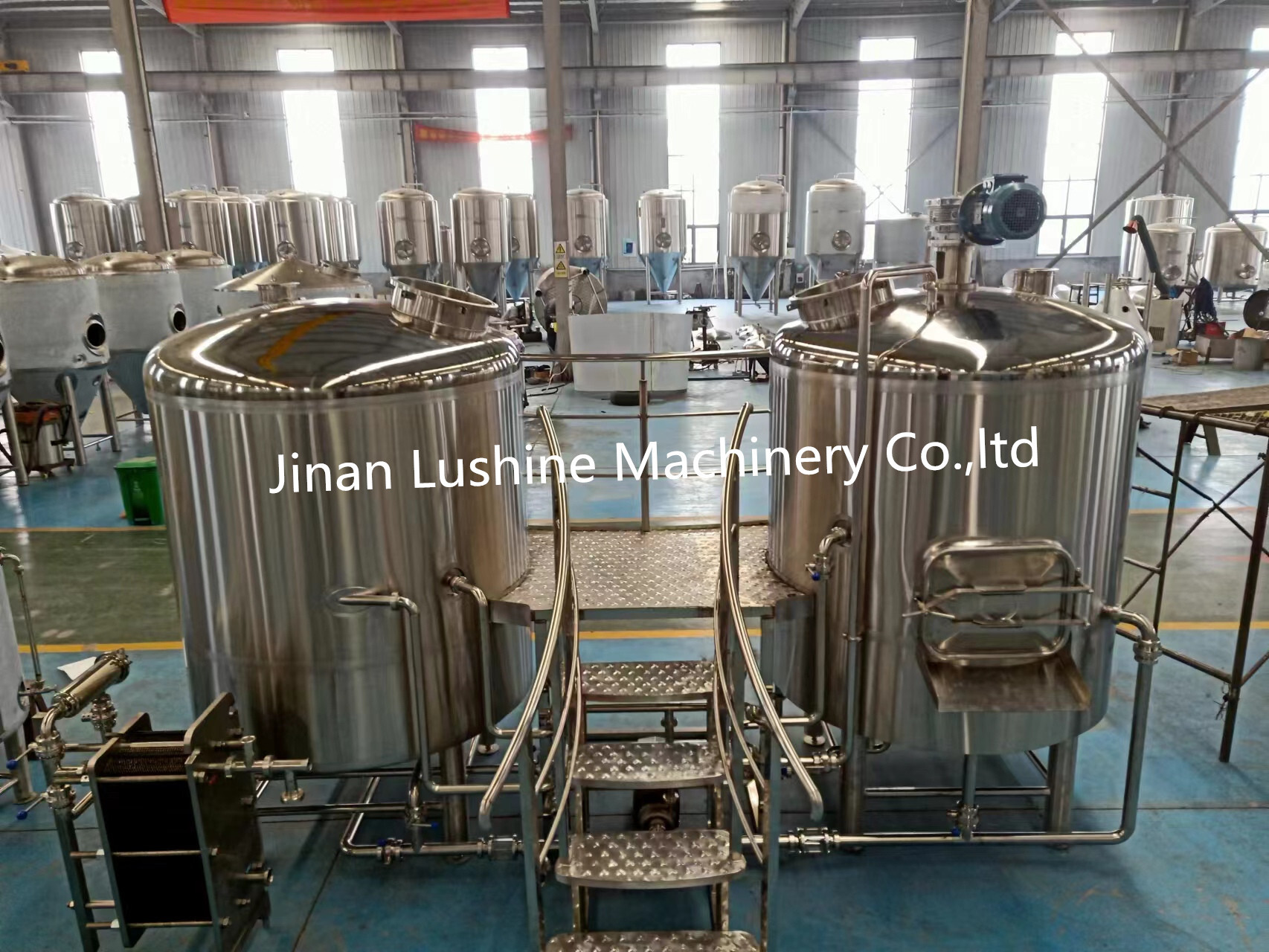

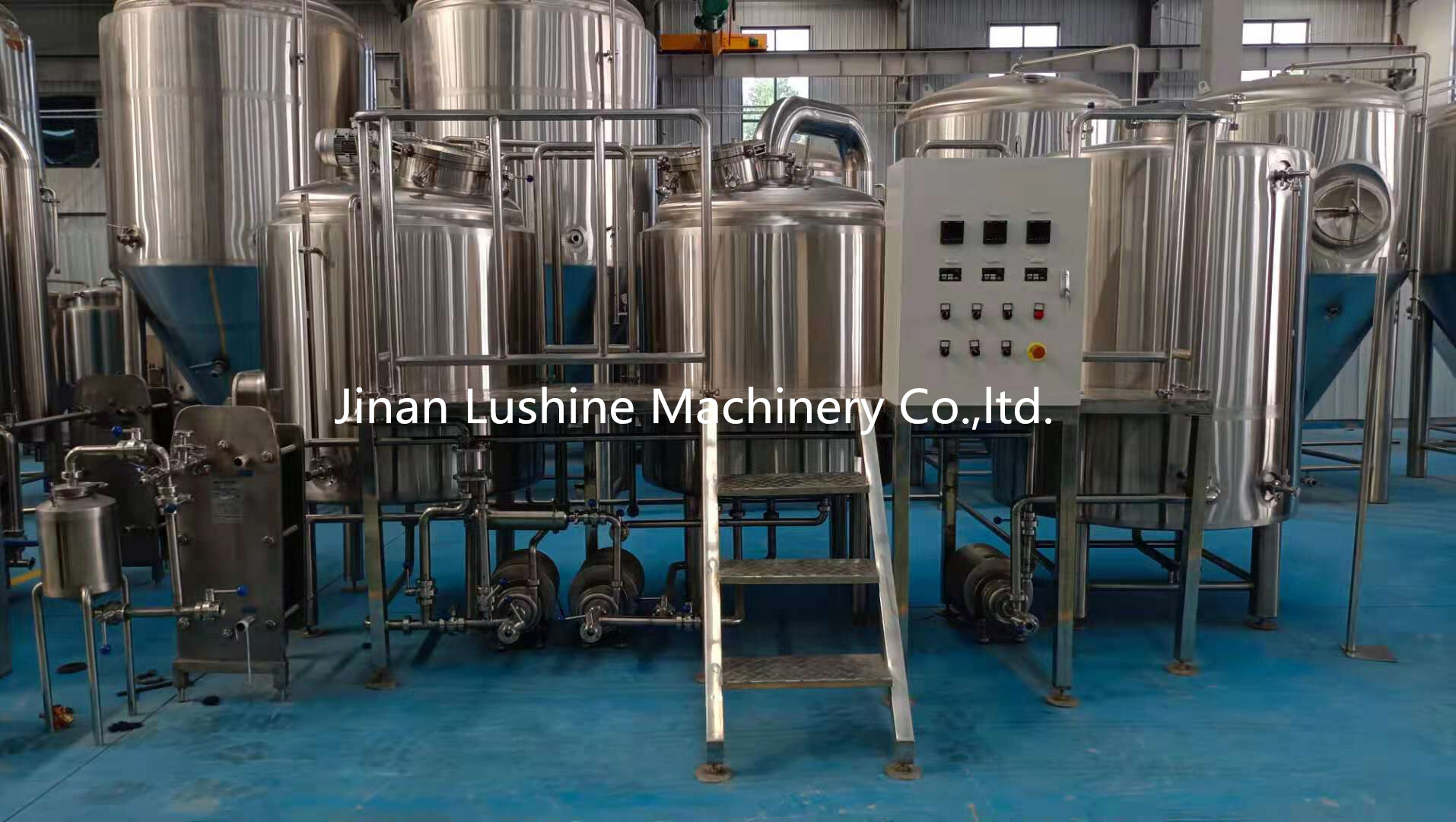

2-Brew House System

1-Insulated mash tun, lauter tun, boiling kettle and whirlpool vessels, or combined vessels.

2-Domed top design for the small size vessels, conical top design for bigger size.

3-Hot liquor tank and cold liquor tank are recommend. HLT will be heated the same with brew kettle.

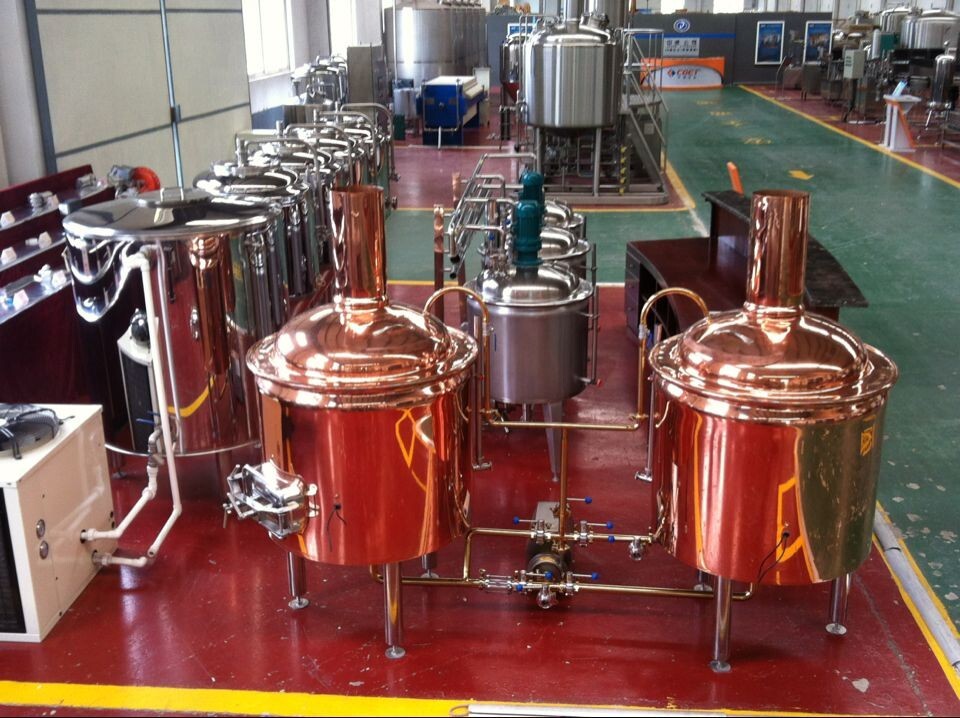

4-SUS304 for all the vessels, and copper cladding is also available for hotel brewing equipment.

5-Agitator for the mashing, rake system for the lauter, milled false bottom and tangent inlet design.

6-Independent control panel for the brew house system, PID or pneumatic valves control.

7-Completely brew house platform.

8-All pilpes and fitting valves for the whole system.

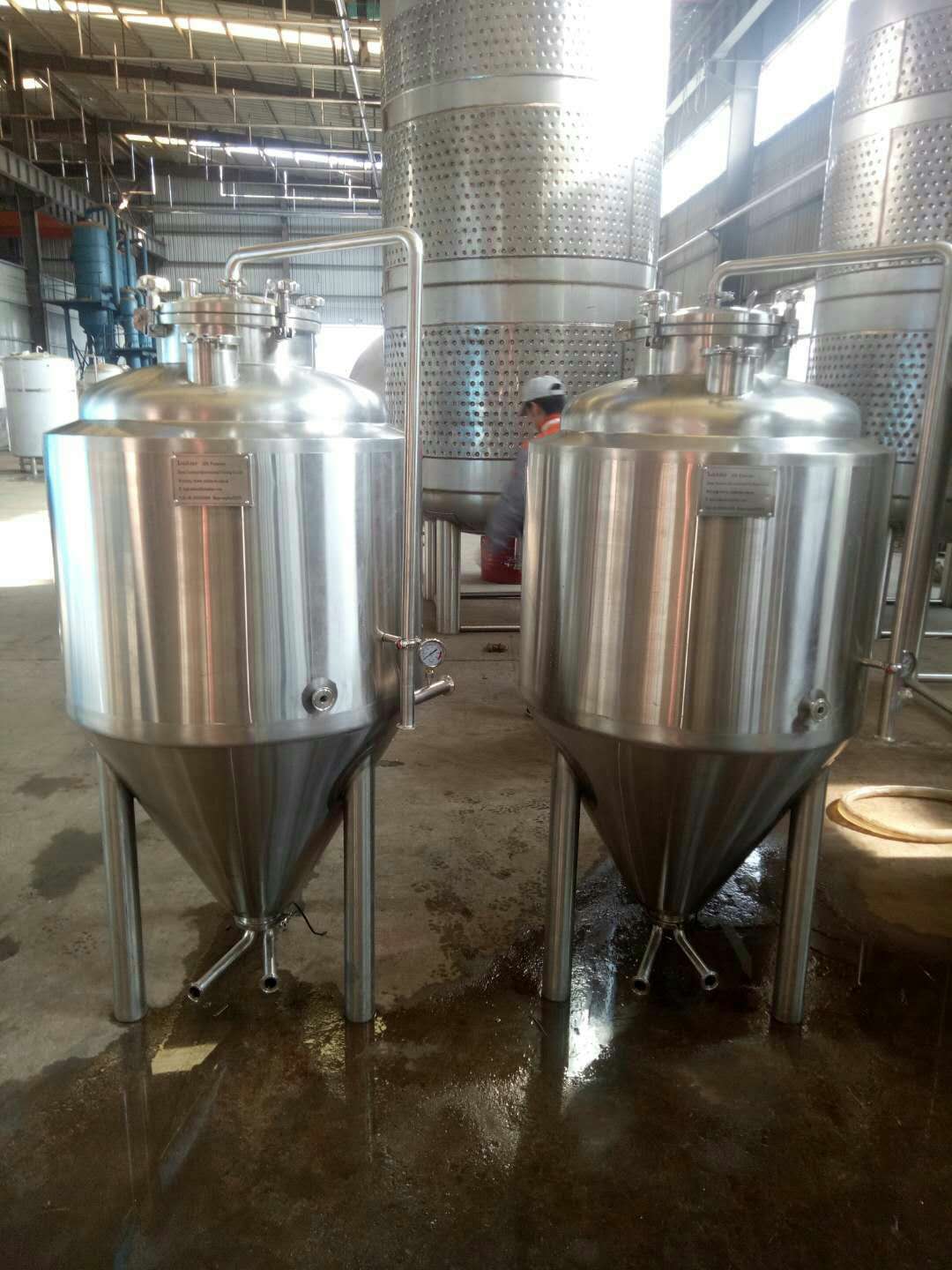

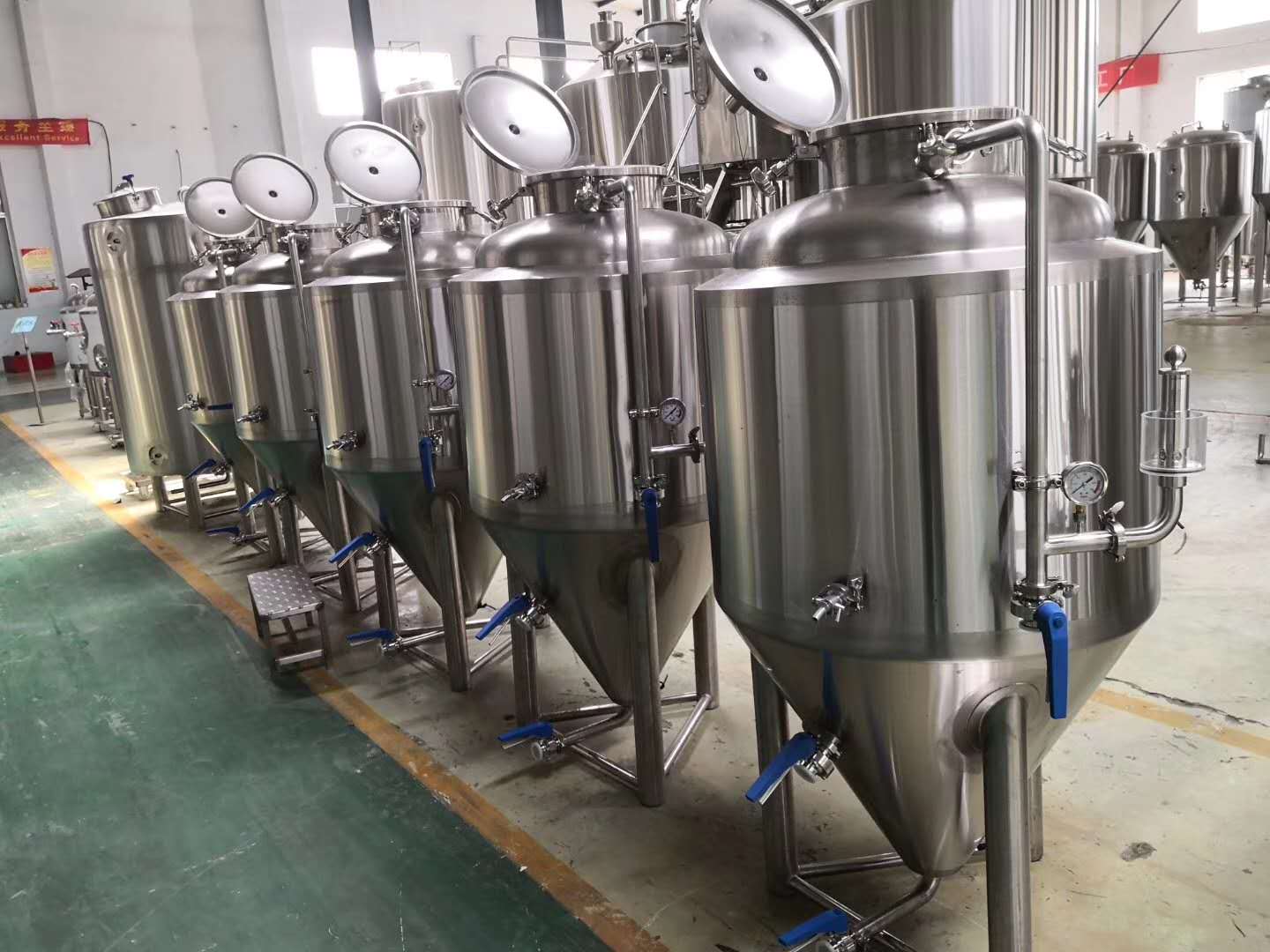

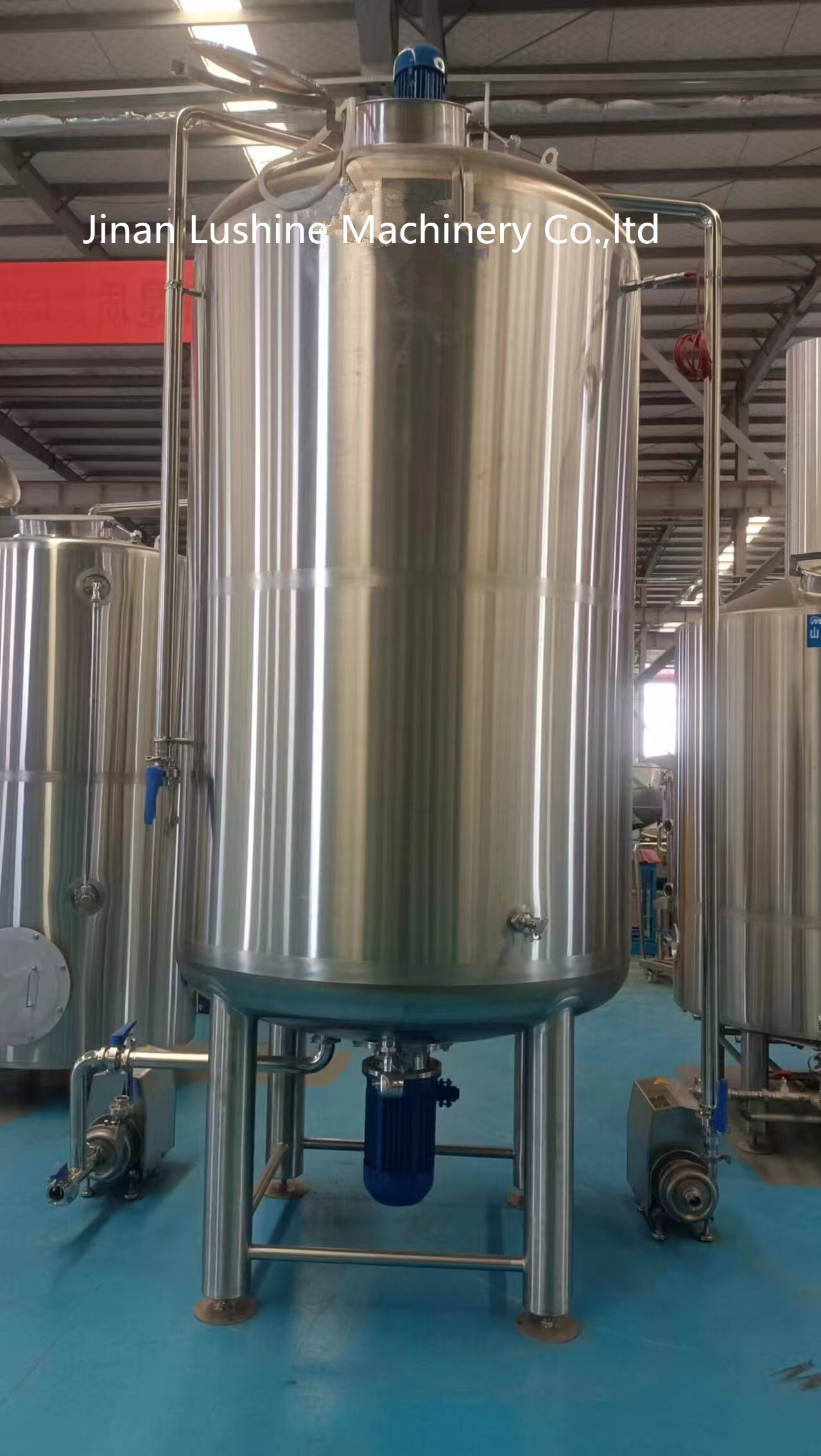

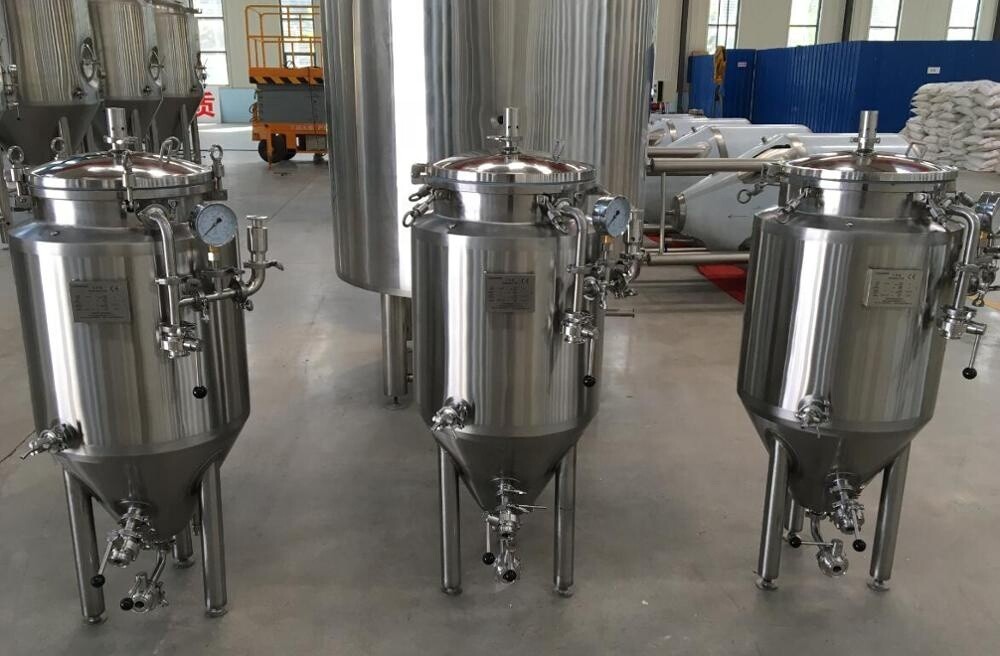

3-Beer Fermentation Tank

1-Cylindrically-Conical Tanks, SUS 304 material conical cylindrical tank with insulation.

2-Dimple cooling jacket for ice water or glycol

3-Pickled and passivated for inner surface.

4-Top or side man door, working pressure 3bar or 45psi

5-Dry hopping port and release valve on tank top.

6-Pressure gauge, sample valve, temperature sensor, spray ball, thermometer, racking arm.

4-Beer Filtration

1-Candle type, Pan type, plate frame type are available.

2-Diatomite power provide.

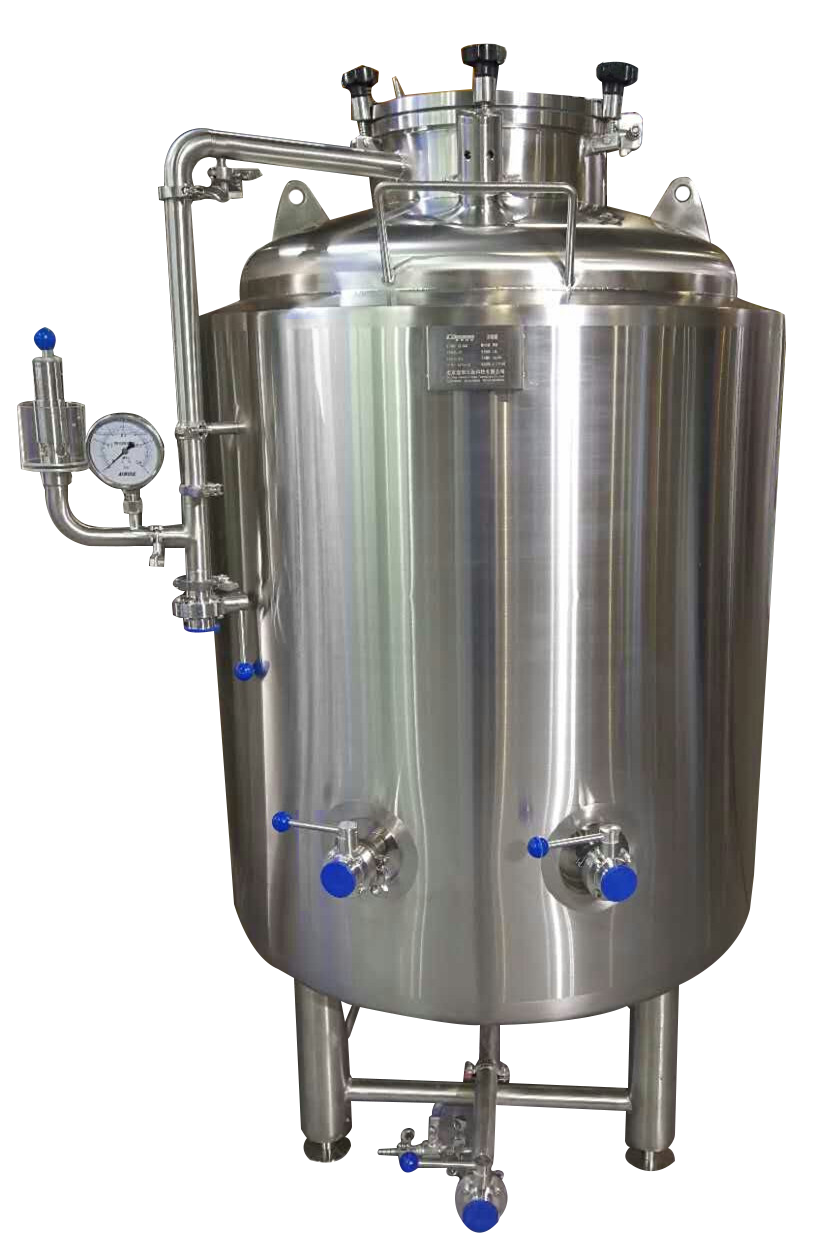

5-Beer Conditioning Tank

1-Beer serving tank, filling tank, service tank, storage tank, BBT – Bright beer tank

2-Dimple cooling jacket for ice water or glycol

3-Pickled and passivated for inner surface.

4-Side man door.

5-Cabonation stone, level gauge for beer storage.

6-Pressure gauge, sample valve, temperature sensor, spray ball, thermometer.

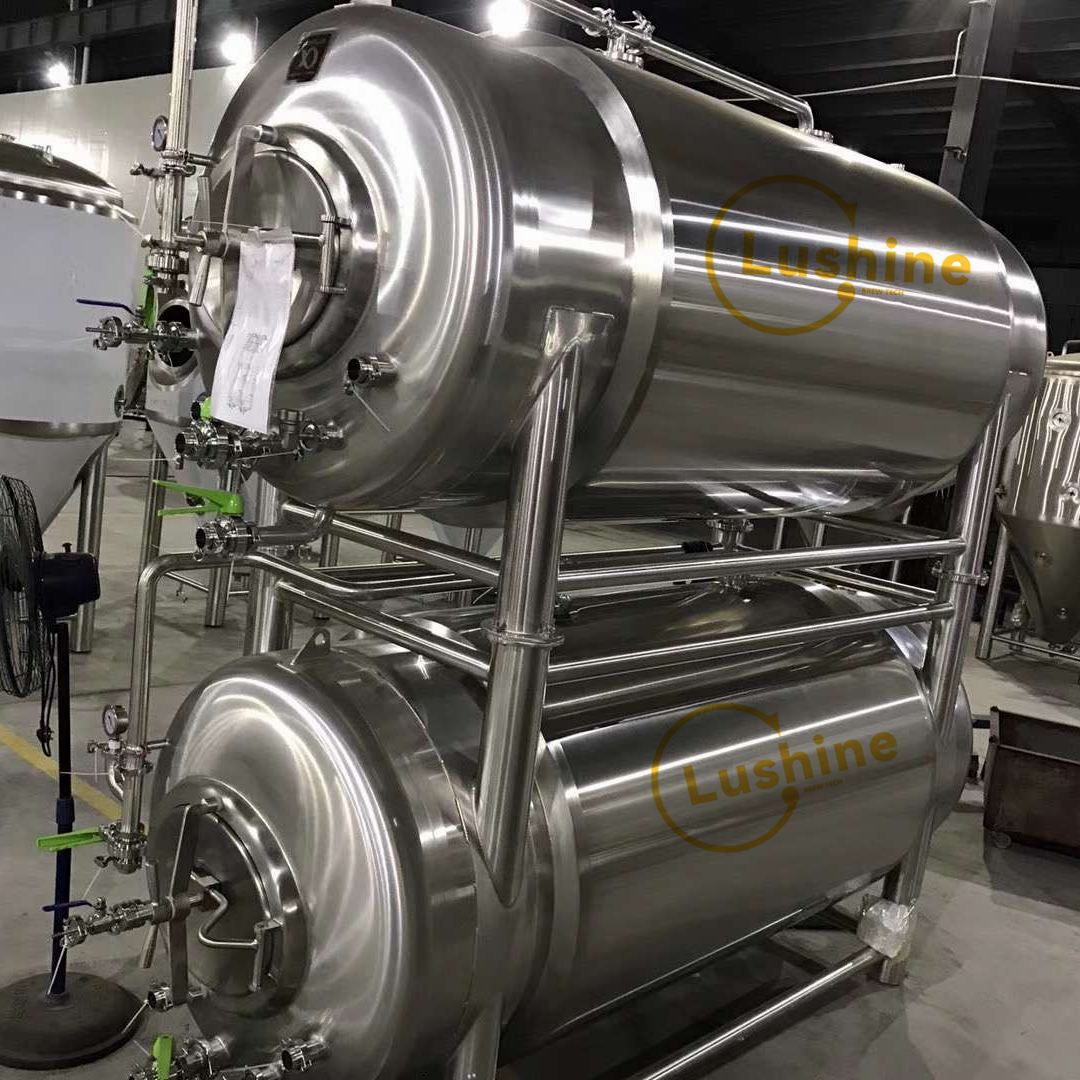

7-Horizontal type are also available.

6-Cooling system

1-Air type chiller with Copuland or Sanyo compressor.

2-Freon 404, 404A,407C are available.

3-Insluated ice water tank/glycol tank

4-cold liquor pumps connected the chiller and tanks.

5-Automatic control for the chiller and liquor pumps.

6-Stainess steel or PPR pipelines with insulation.

7-Control system

1-PID system or PLC system are available.

2-Independent control panel for the brew house system, Auto control for the motors and pumps.

3-Independent control for the chiller pump and fermentors. Auto control.

4-Siemens PLC S7-200 program and touch screen are available.

5-Penumatic valves are available.

6-App design are available.

8-Kegging machine

1-Double station Keg filling line and keg washing machine, 60-100kegs per hour.

2-Combained filler& washer, 30-50kegs per hour

3-Europe standard and US standard stainless steel kegs.

9- Auxiliary equipment

1-Steam generator, gas, electricity or direct fire heated.

2-Soft water treatment for the generator.

3-RO water treatment for the brewery.

4-CIP system for the brew house and beer tanks.

5-Air compressor.
