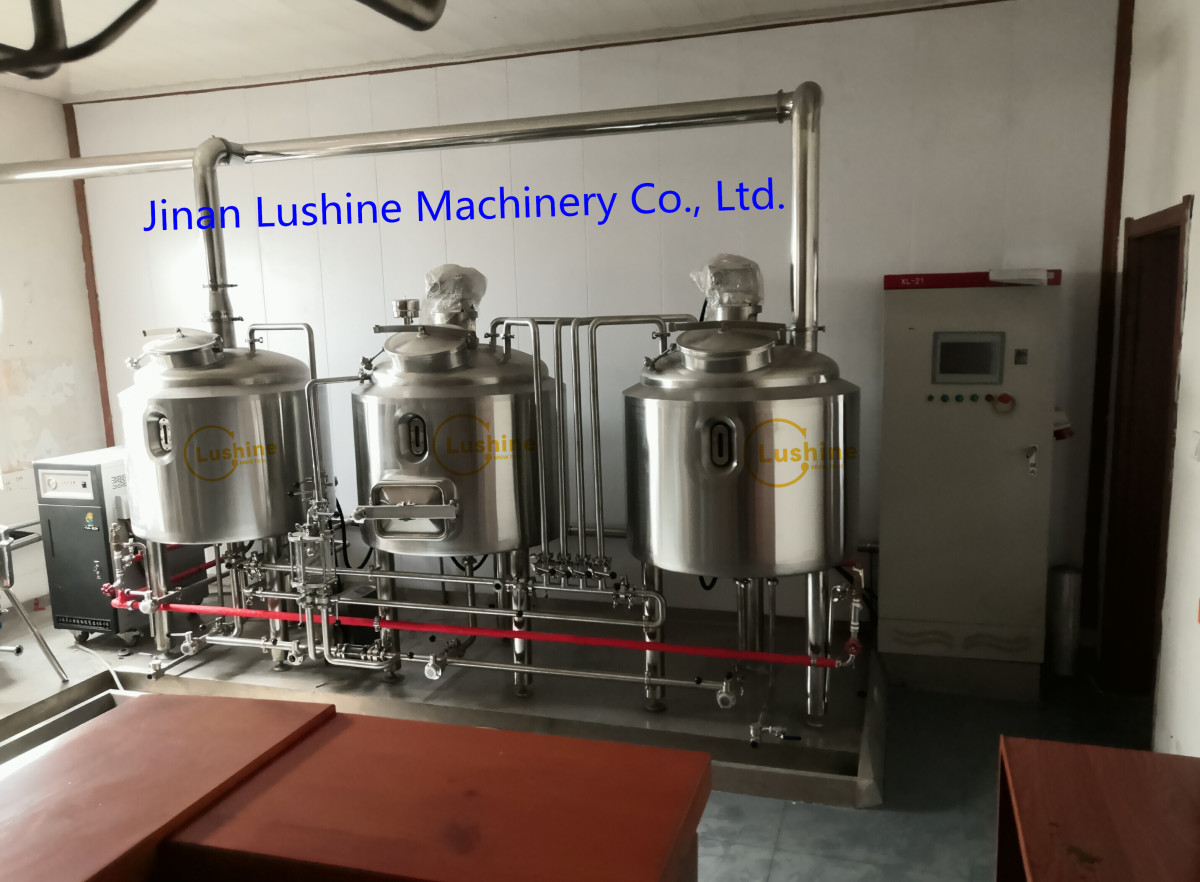

200L  Beer Brewing Equipment

Brew house System General description:

Material: SUS304,

Heating method: electric heating or steam heating or direct fire heating.

Two vessel, three vessel, four vessel brew house available.

Basic configuration:

• Mash / lauter tun with top or bottom blade stir, counter washing and wort collect coil

• Kettle / whirlpool with tangent inlet, electric heater inside tank, steam jacket or gas chamber underneath.

• Support fittings: double / single stage plate cooler, piping strainer, grist hydrator, wort grant tank etc

• Standard brew house platform or customized.

• All pump with VFD

• With hot water tank configured for sparging and mashing in etc.

• Valves to be manual butterfly one or pneumatic

• Piping connection to be TC or DIN.

• Hot water tank to be 2-3 times bigger for mashing, sparging and cleaning

Features:

• Reasonable water blending unit for temp and water amount control

• Well sized tank diameter to guarantee right filtration are for wort extract

• Lower energy cost and material consumption

• Wort grant creating more buffer during lautering

• Special tank and piping construction to avoid the wort aeration problem and decrease the material lost

• Whole brew house unit can be installed on frame

Optional:

• Optional copper cladding

• Customers logo can be engraved

• Mash / lauter tun with steam jacket for decoction brew.

•

•

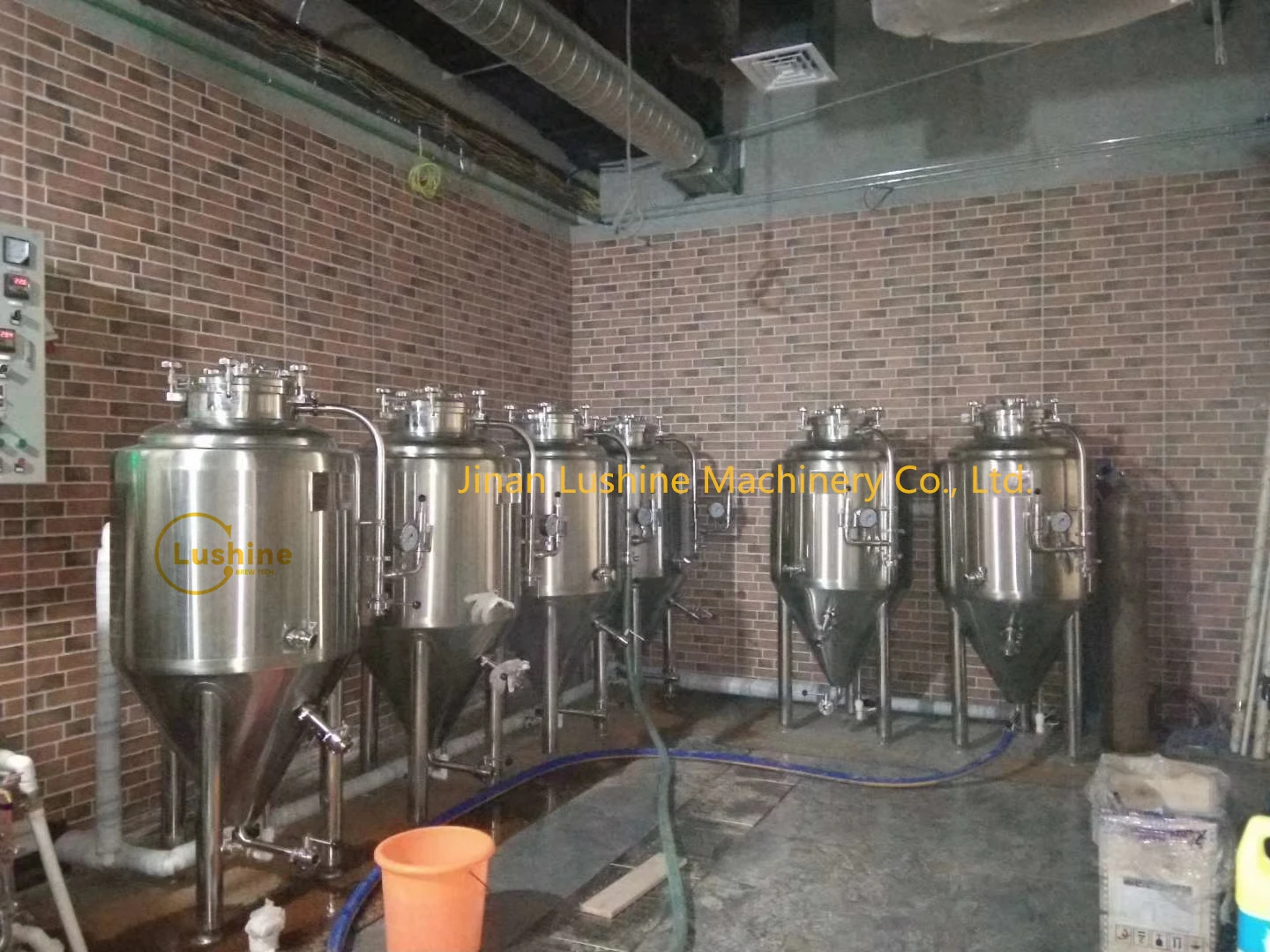

• Fermentation system

• The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

• We can customize design & manufacture various beer brewing equipment according to your requirements!

• Send Inquiry to us for more information!
