5000L Turnkey Beer Brewing Equipment

· All tank material is 304 stainless steel.

Modular design, 20hl, 30hl, 50hl, 80hl, 100hl per brew, max 7 batches per day. Can be designed as each diffrent customer’s accurate requirement.

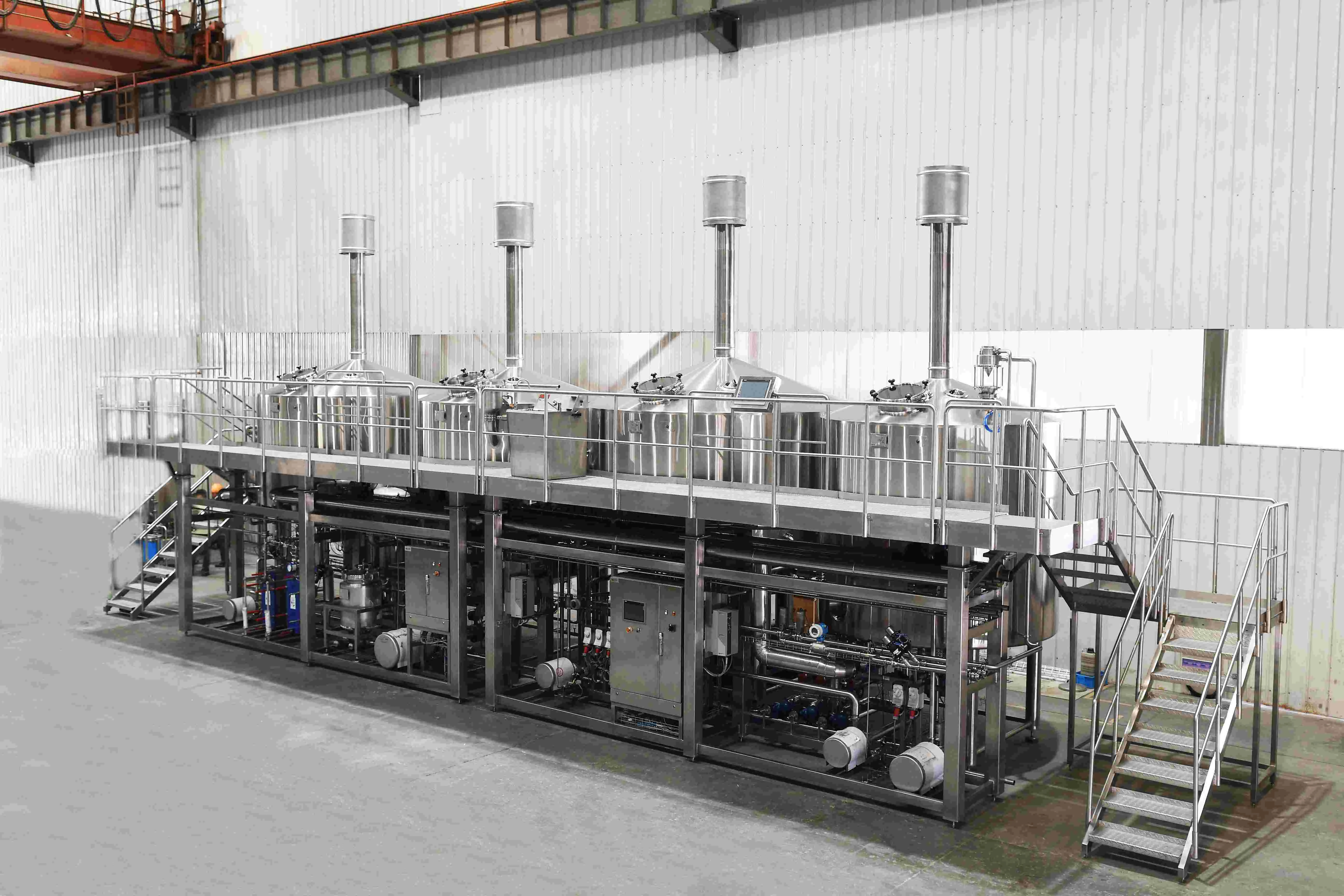

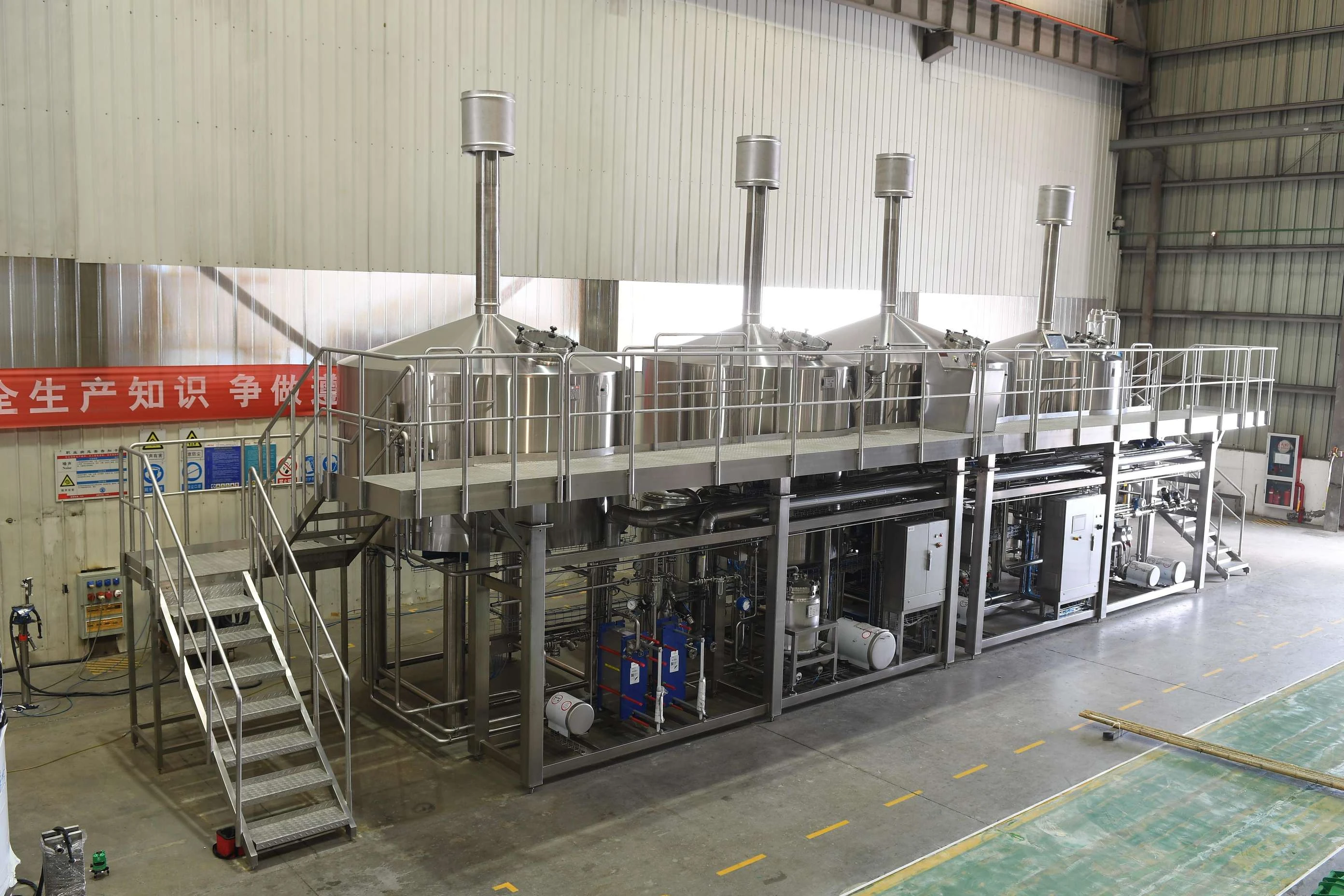

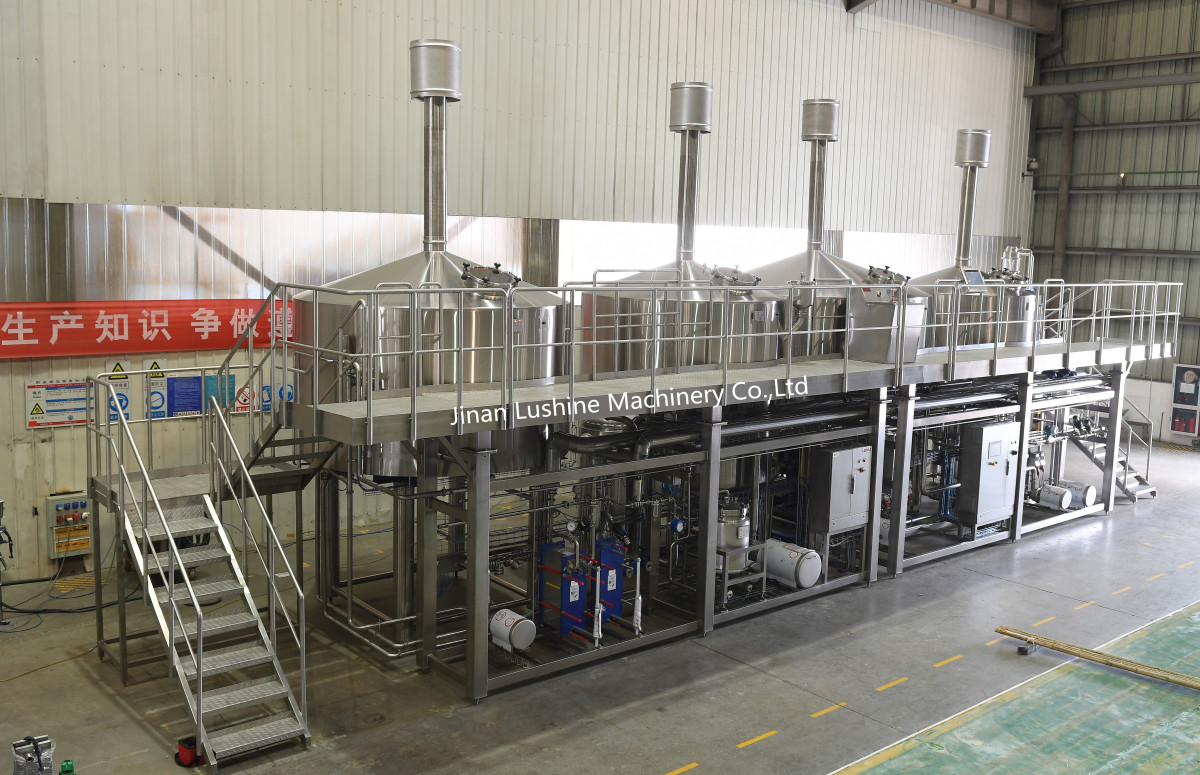

· Four main vessels (Mash Tun, Lauter Tun, Wort Kettle, Whirlpool) including piping, valves, pumps, plate exchanger, platform,etc. will be pre-assembled as one module at our factory.

FEATURES

· We plan and design complete breweries, all systems can be designed with the client’s input for a defined process;

· A variety of different vessel combinations and a number of vessels: multifunctional tanks (mash/lauter tun, kettle/ whirlpool), individual process tanks (mash tank, lauter tun, boil kettle, whirlpool, hot/cold water tanks);

· Fully piped and wired, including valves and sensors;· Integrated pump system;

· CIP system: separated CIP for individual tanks to prevent cross product interference;

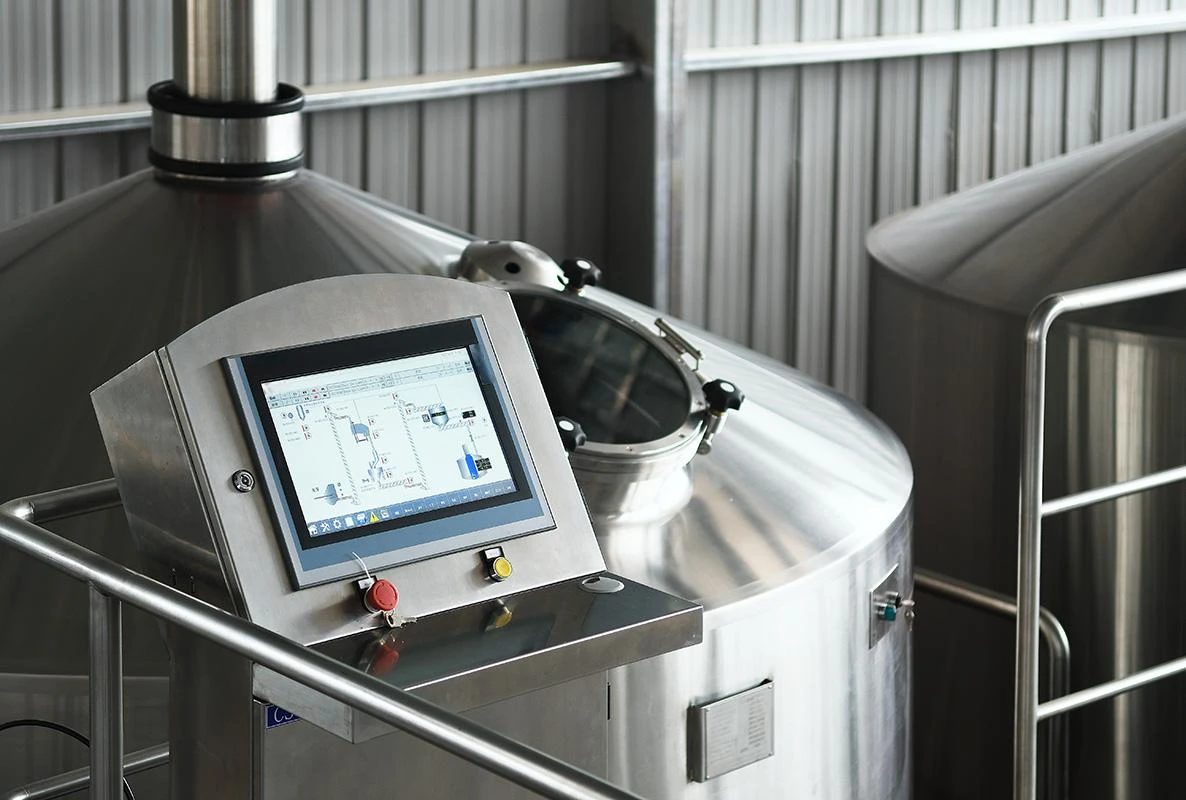

· Master brew interface control system (touch screen control panel),

· Staircases and platform combine the vessels in a compact unit, perforated and sectional construction of the walk-on surface ensures protection against slipping;

· Automated lautering, automated water mixing,· High quality insulation effect: Rock wool thickness: 80-100mm

· Beautiful weld and polish: all argon gas protection welding. Polishing precision up to 0.6µm

· World's top brands' electronic components: siemens PLC and touch screen, Schneider button of circuit breaker, Airtac electromagnetic valves and other pneumatic parts, etc.

· Good abrasion resistance material: inner-Jacket(SUS304)thickness: 3.0mm; external-Jacket thickness: 2.0mm; seal head thickness: 3.0mm

· Fermentation Unit: standard stainless steel conical cylindrical fermentation tanks; tanks quantity is exactly calculated by fermentation cycle for various beers; all manhole, valves, pressure gauges, fittings etc are included.

· Bright Tank Unit: standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation; tanks quantity is exactly calculated for various beers and the function; all manhole, valves, stone, gauges, fittings etc are included.

· Cooling Unit: insulated glycol water tank with or without copper coil for glycol liquid holding and mixing; efficiency chillers or refrigerators with freon to supply cooling energy; sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger; all pipes, fitting, insulation materials are included.

· Electric Controlling Unit: Fully automatic control or semi-automatic control : controlling cabinet with temperature, on-off controlling for brewhouse; electrical controlling cabinet with temperature, on-off controlling for cooling parts; temperature controller, thermocouple, solenoid valves etc are included; PLC with touch screen panel for special request.

Performance

· The temperature and flow of mixed water can be adjusted and accurately measured.

· Dedicated raw material & water mixing device. Milled malt and water can be fully mixed before mash-in.

· High quality laser-welded jackets.

· More uniform distribution of spent grains.

· Balance column structure, smoother filtration.

· Simplified combined grain-raking and discharge unit ( FDW to rake the grain bed and REV to discharge spent grains).

· Large flow & low pressure rinsing device eases cleaning of Trub.

· Modularized design for easy dismount, transport and installation.

· By utilizing Brewtech Brewing Control System, visualization of processes can be realized with information tips and failure warning functions to integrate smart operation and recipe management.

We can customize each set beer brewing equipment according to your requirements!
