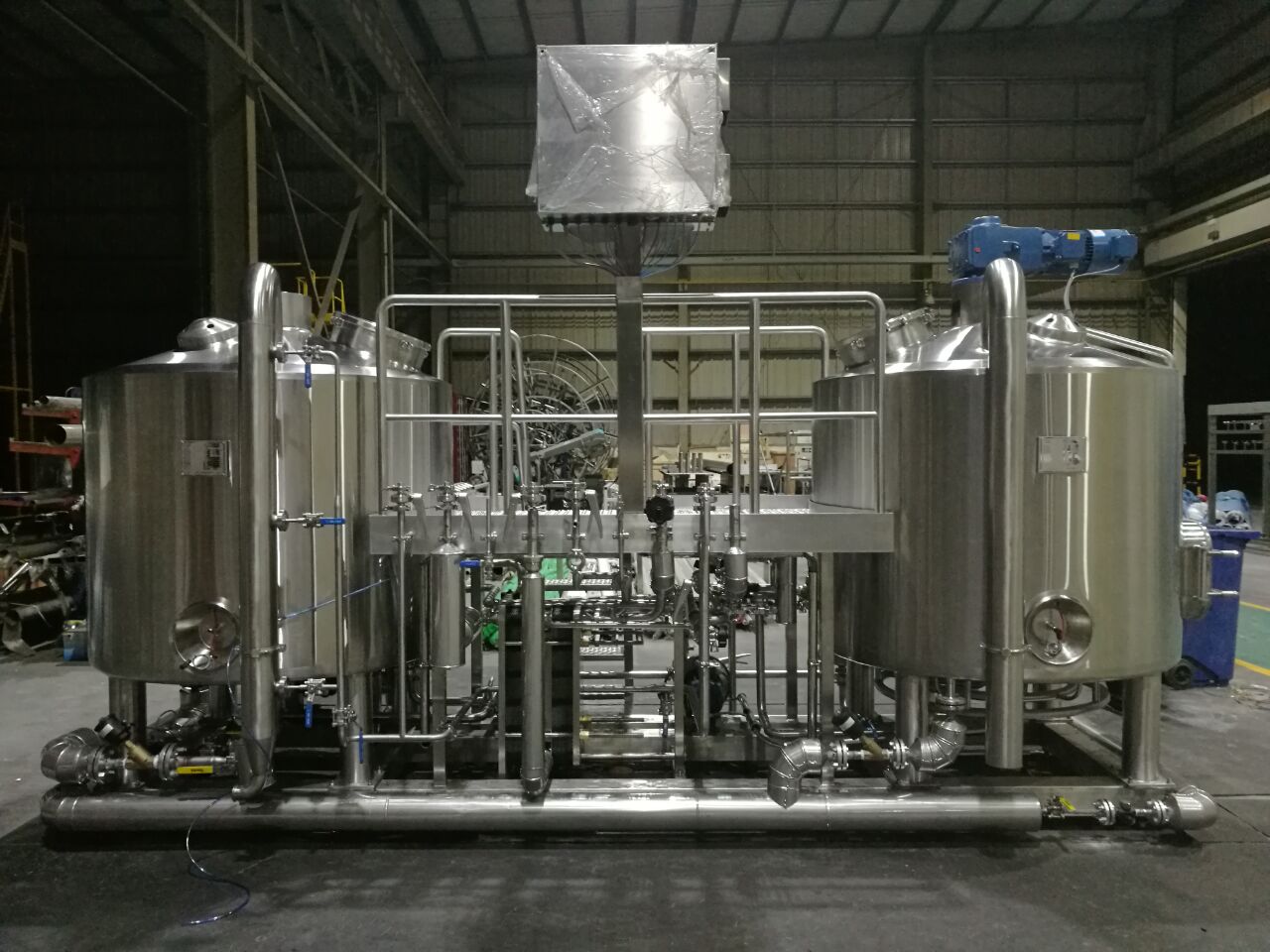

10HL Beer Brew House System

Product description:

1000L Brew House All material is stainless steel 304 or red copper.

We can design and produce the tank according to different customer's different configuration.

Technique Parameters of 10HL Mash/Lauter tun:

1. Stainless Steel 304; Brushed outer shell;

2. Total capacity:1200L,effect capacity:1000L，

3.Tank Dimension ∮1360mmx2600mm

4.Top mounted man way with full glass, milled sieve plate,

5.Top decorative vent stack, sight light, with raking system, motorized rake and plow, spent grain exit on tank side wall, etc;

6.Frequency control; CIP rotary spray device; safety combination;

Thickness of insulating layer: 80mm; Thickness of Inner: 3mm;

Outer and Inner plate protection, ribbon polished on welds.

Technique Parameters of 10HL Kettle/whirlpool tank:

1. Tank top is cone shape not doomed head, tank outer side is Stainless Steel 304; Brushed outer shell;

2. Total volume: 1650L, Effective volume:10HL;

Tank Dimension ∮1360mm x 2227mm

3. Steam jacket heating area 2.4㎡.

4. Inner tank thickness 3 mm, Jacket thickness 2 mm ;Insulation thickness 80 mm ,Cladding thickness 2mm;

5.Top mounted man way, CIP Spray ball, light fixture, thermo well temperature read-out, etc; safety combination;

6.With exhaust pipe, to vent steam outdoor;

7.Whirl pooling/tangent inlet.

With all matched wort pumps, wort heat exchanger, piping lines and valves, Work Platform etc., whole set brew house equipment.

The above is just a brief description, and the final design is subject to the technical drawing that confirmed by both sides.

We can customize design & manufacture each set beer brewing equipment according to your requirements!
