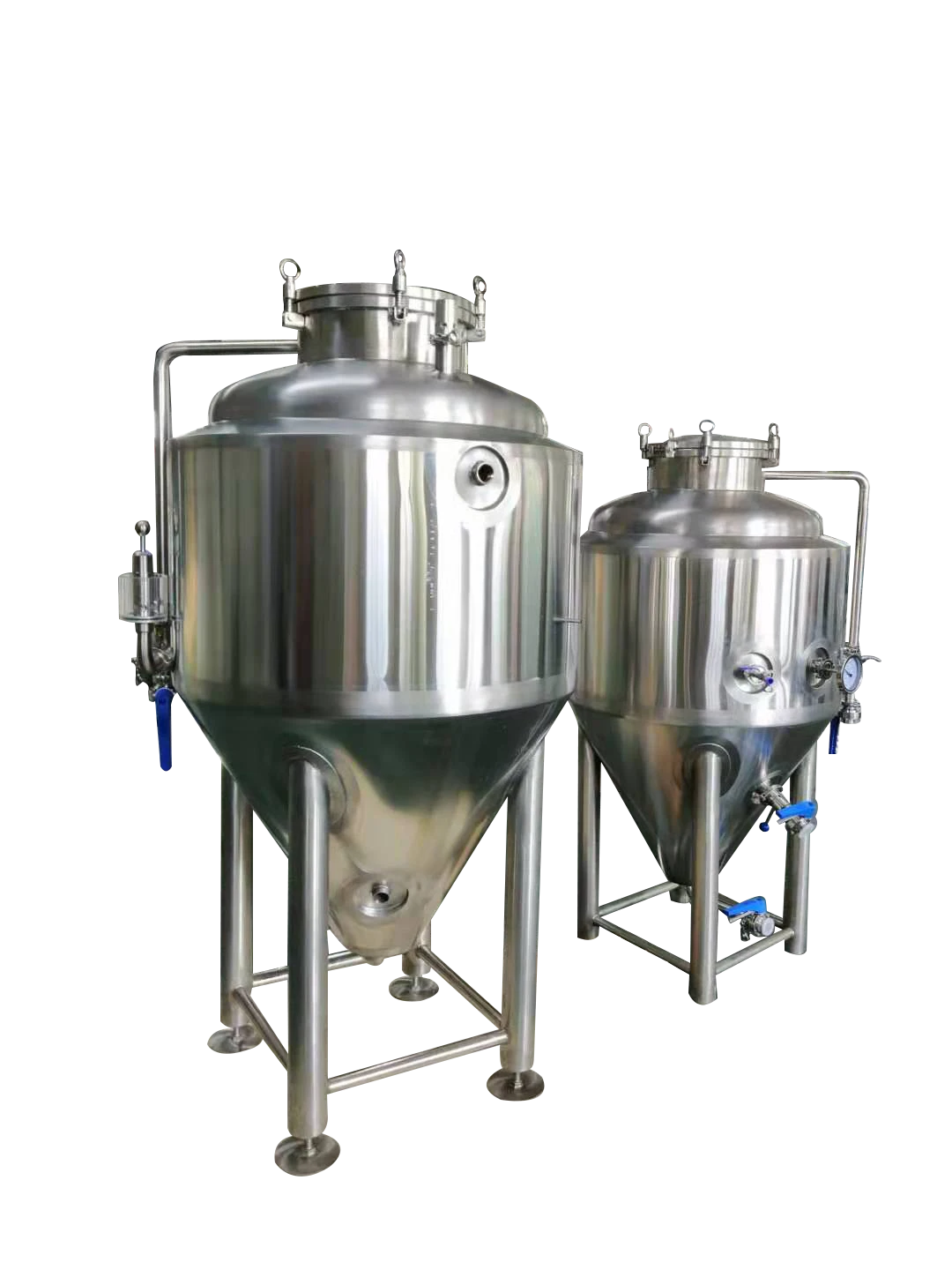

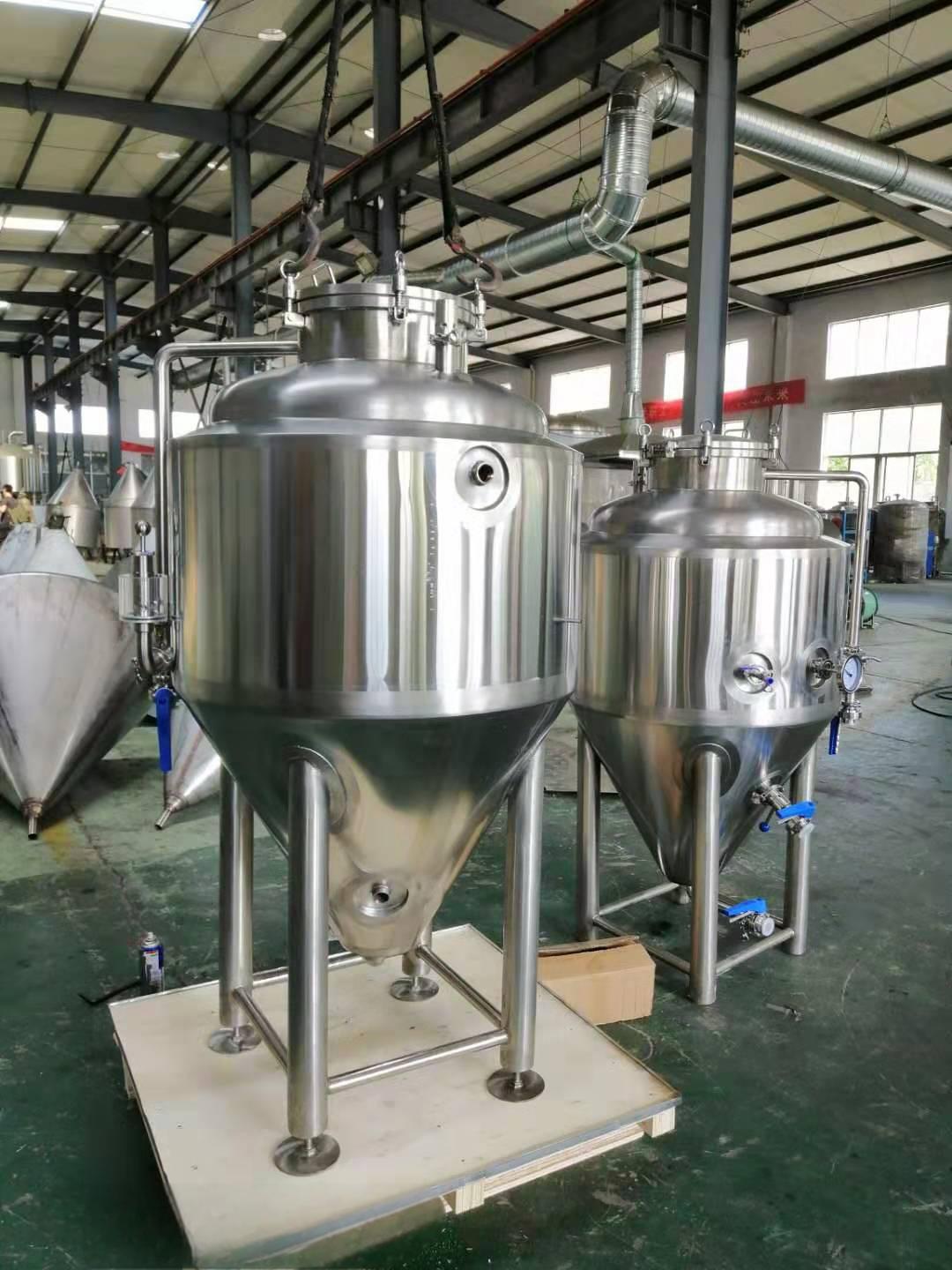

3.5bbl Fermenter

· Product description: All material of the tank inside and outside is stainless steel 304, We can design and produce all the tank according to customer’s special request

10HL Fermenter Detail Technical Parameters:

1. Sanitary Stainless steel 304, Tank out shell is brushed plate.

2. Effective volume: 3.5bbL; total volume: 4.3bbl

3. Dome top head, cone bottom;

4. Polyurethane insulation, thickness: 80mm; inner body thickness 3mm, cladding thickness 2mm;

5. Two dimple plate cooling jackets on tank wall and bottom cone;

6. Side man way

7. Tank working pressure: 15psi;

8. Dry hopping port on top head; Sample valve; With rotary CIP spray balls and arm; PT100 temperature probe;

9. Top breather valve;  pressure regulator, Glycol solenoid valves.

10. Separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank.

11.Two ladder hooks, 304ss legs with screw assembly to adjust leg height.
