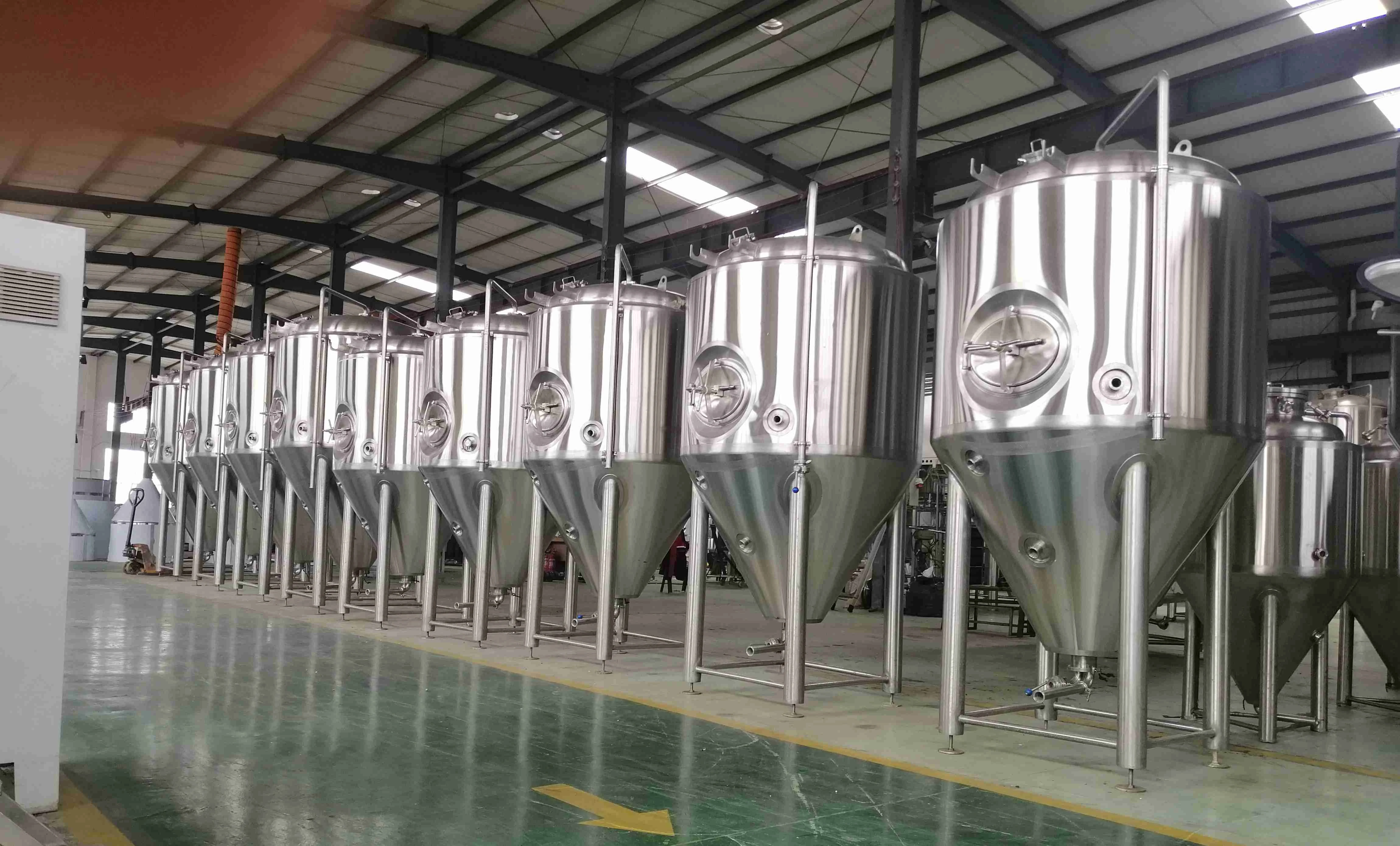

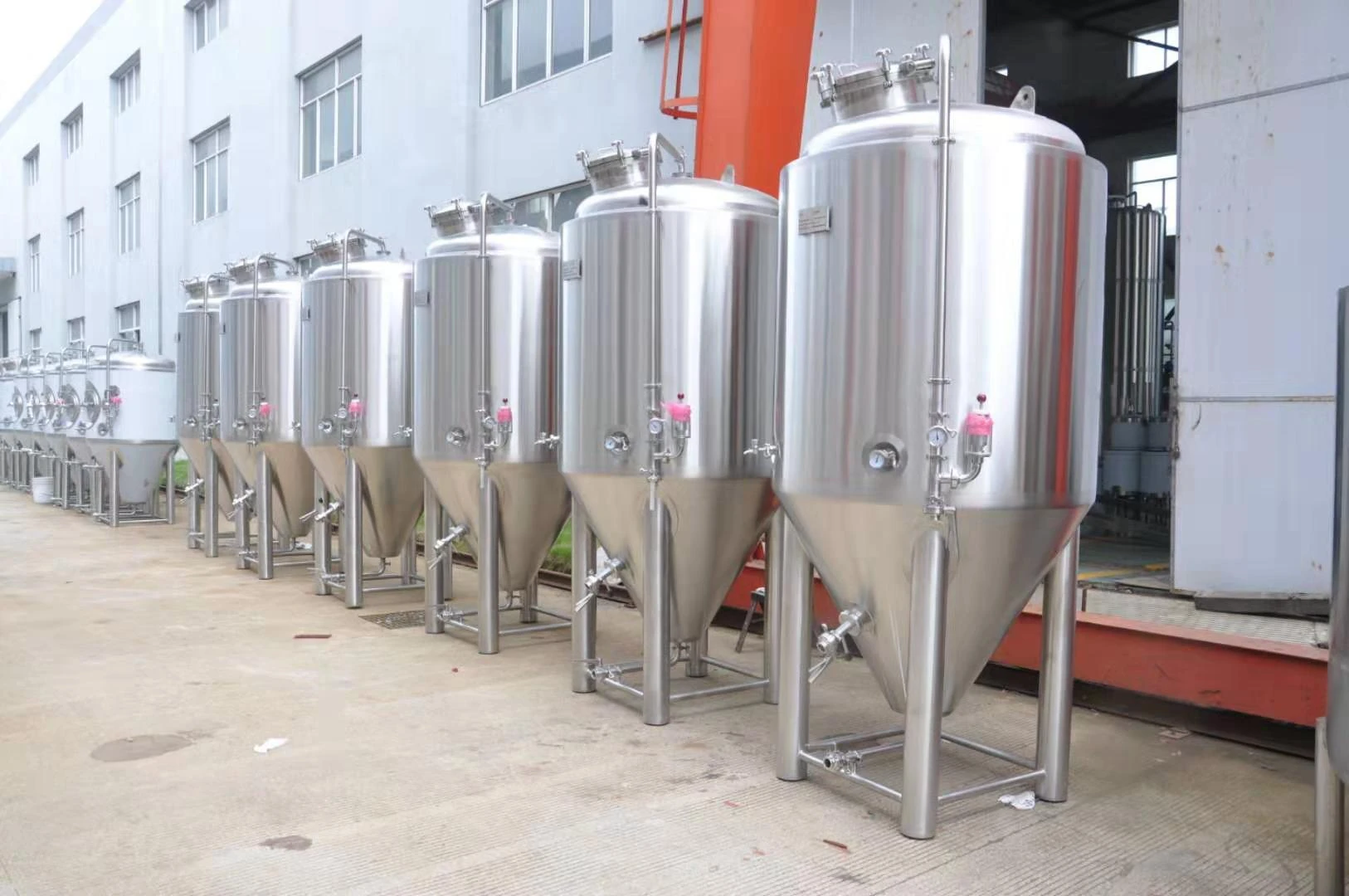

10HL Fermenter

· Fermentation tank

· Product description: All material of the tank inside and outside is stainless steel 304, We can design and produce all the tank according to customer’s special request

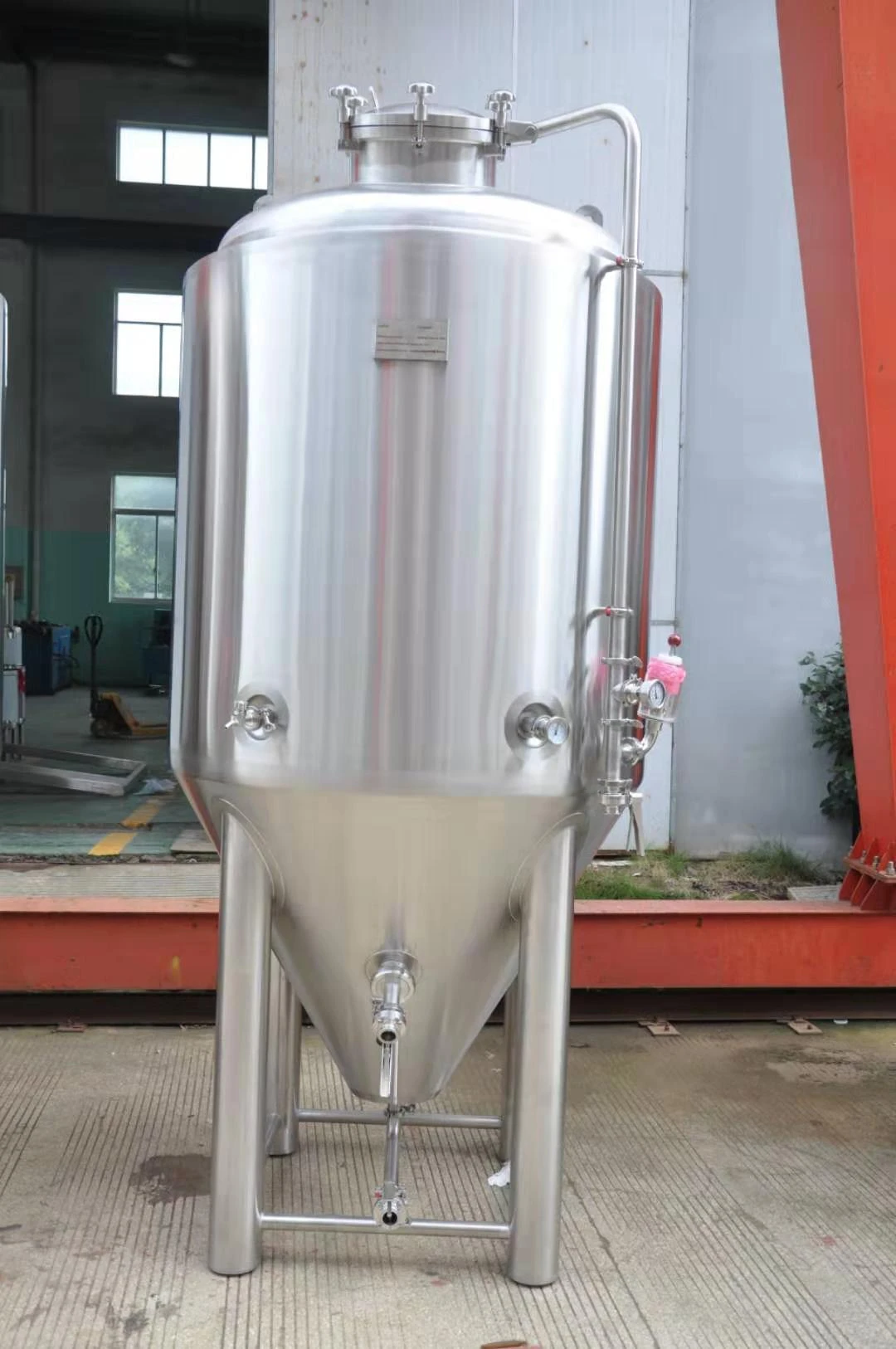

 12HL Fermenter Detail Technical Parameters:

· 1: Tank inner and outer side are all 304ss.

· 2.Effective volume: 12HL, total volume: 16HL, with 25% top rest space to avoid beer foam out;

· 3.Dome top head, cone bottom; bottom cone angle: 60 degree.

· 4.Polyurethane insulation, thickness: 80mm; inner body thickness 3mm, cladding thickness 2mm;

· 5.Two dimple plate cooling jackets on tank wall and bottom cone;

· 6.Top man door, Tank working pressure: 15psi;

· 78.Dry hopping port on top head; Sample valve; With rotary CIP spray balls and arm; PT100 temperature probe;

· 9.With German Kieselmann mechanical pressure regulator, Pressure gauge; Glycol solenoid valves.

· 10.Separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank. Side ports and racking arm pipes will be 1.5 inch.

· 11. Two ladder hooks, 304ss legs with screw assembly to adjust leg height.

· 12.More detail technical parameters as per final production drawing.
