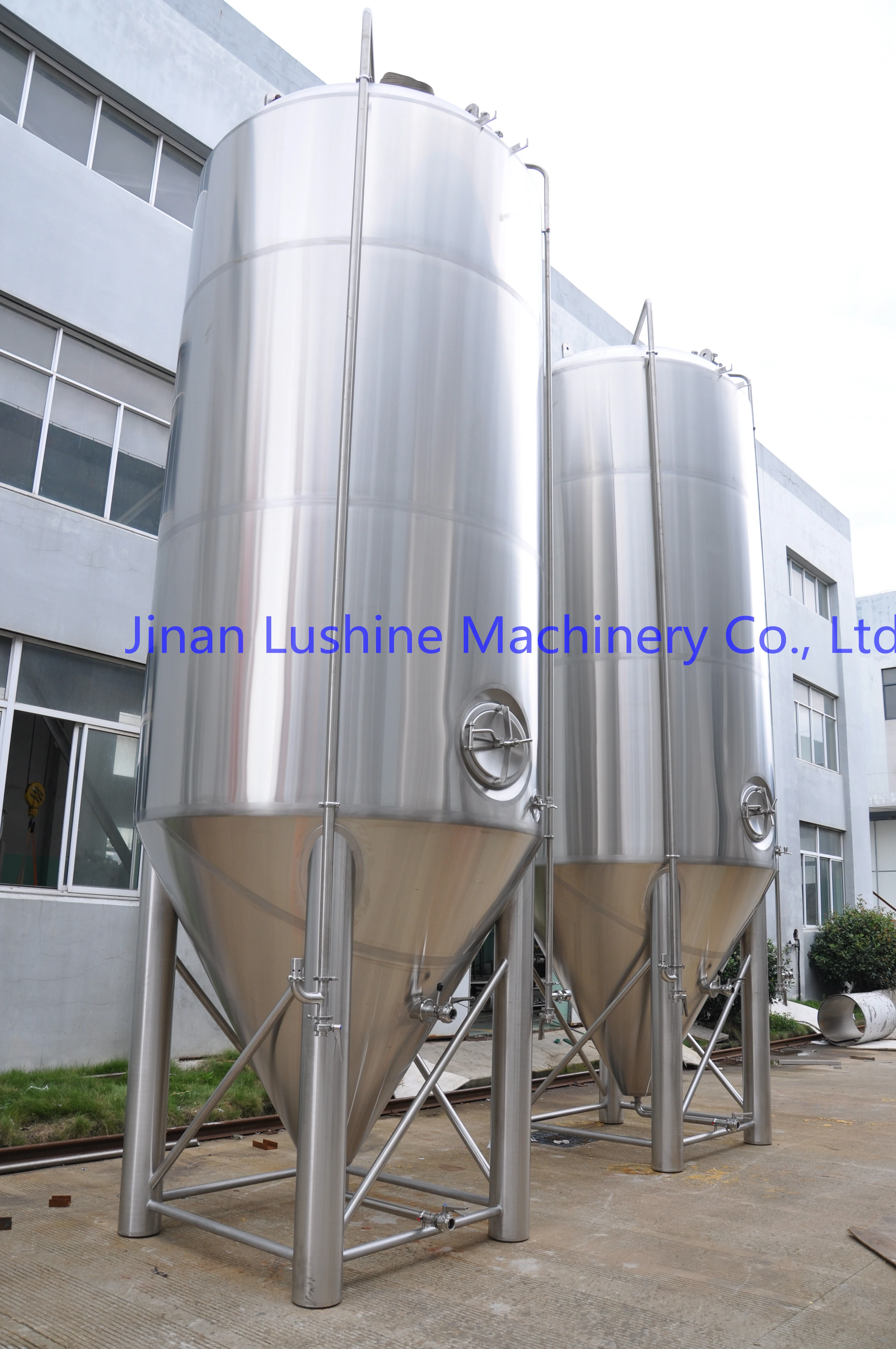

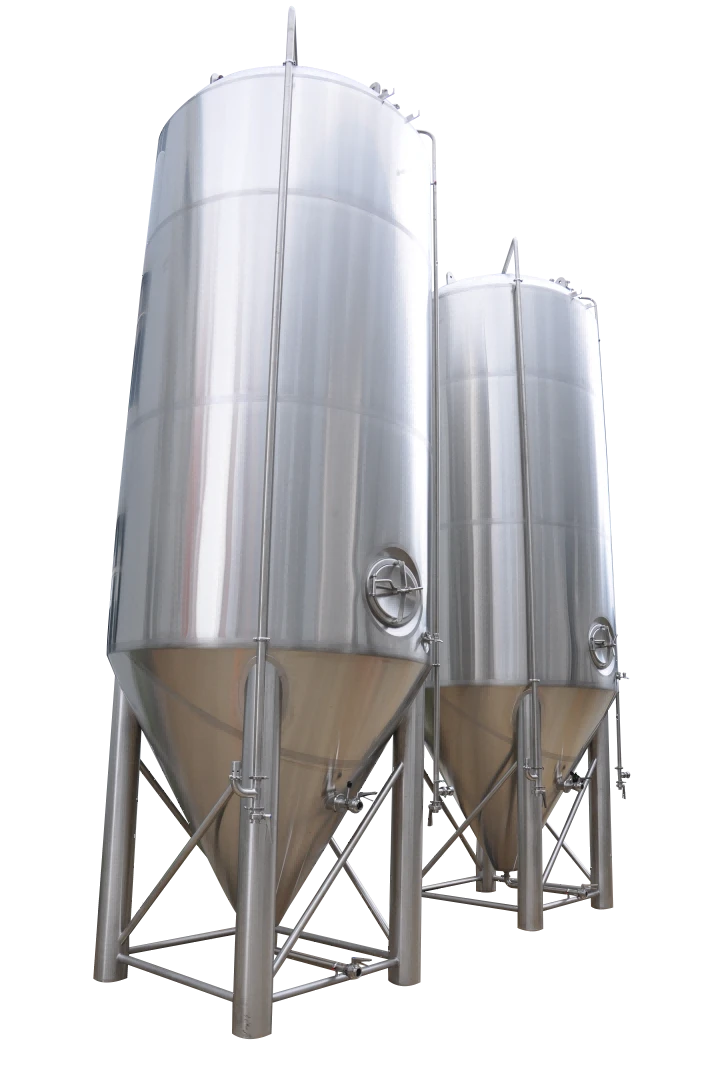

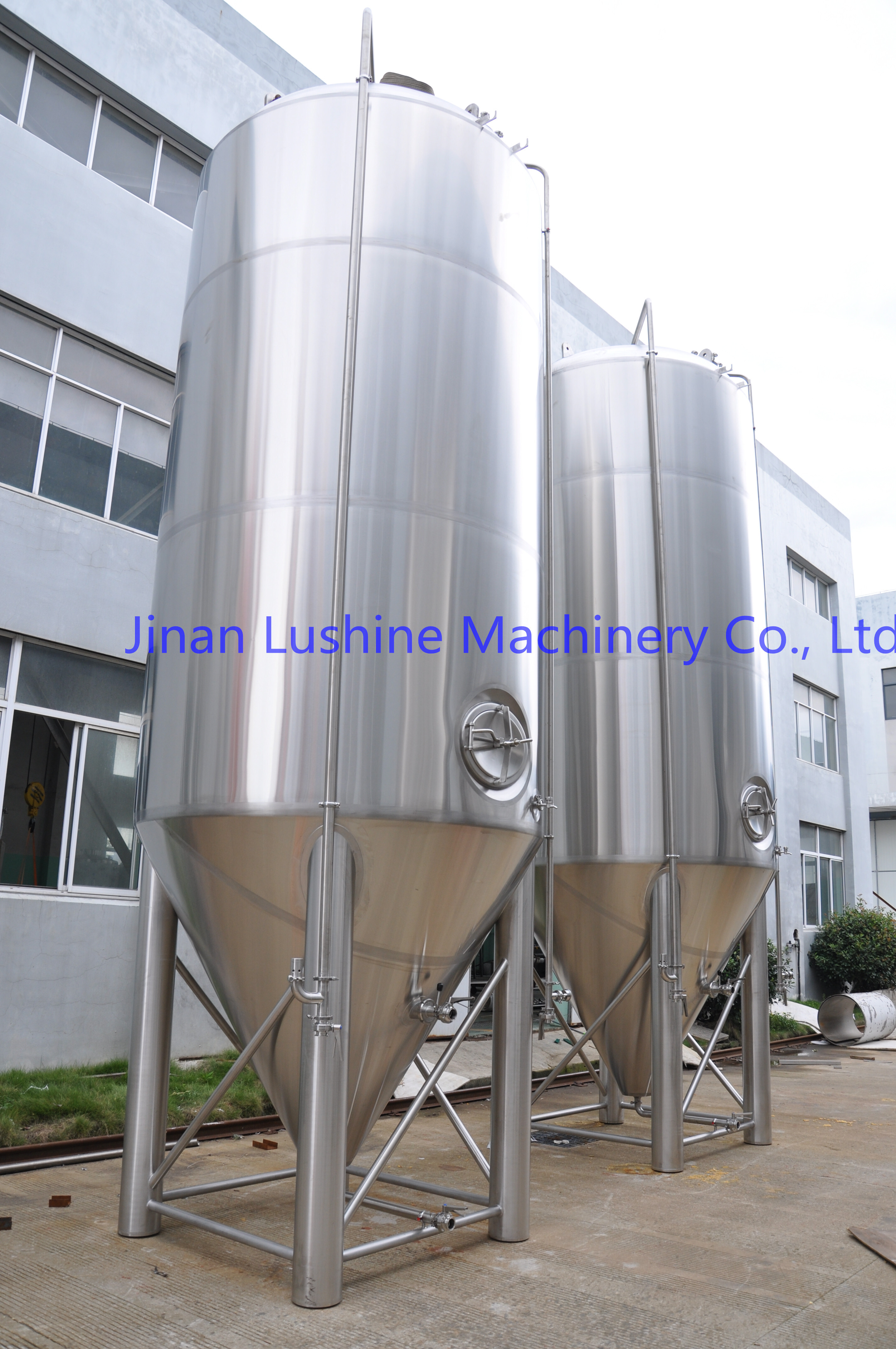

120bbl Fermenter

Descriptions:

Beer fermentation tank is also called CCT, Lushine fermenters are made of SUS 304, for fermentation and maturation of beer. We design, manufacture all variety fermenters from 50L to 300HL or 1bbl to 300bbl. With all the necessary valves, connections, all fittings installed with tanks using top brand in China or brand from Germany or other countries.

Details:

•  Domed top and cone bottom cone, cone angle: 60-90 degree

•  With 25% head space for fermentation

•  Tank Wall thickness: 3-4mm, depending on tank size

•  Pressure: 2-3 bar / 15-30PSI

•  Dimple plate cooling jacket, cylinder and bottom cooled, Polyurethane insulation

•  Four adjustable legs, with leg bolts

•  Diaphragm pressure gauge with CIP arm

•  Top: with CIP arm, breathe valve, dry hopping port

•  Cylinder: Glycol inlet / outlet, side man way, PT100,sample valve, level tube (optional)

•  Bottom: Racking arm (optional), bottom beer / yeast outlet, glycol inlet / outlet, carbonation stone (optional)

•  Connection size depends on tank size.

•


Optional:

• German  Kieseman brand pressure regulator/bunging valve

•  Level tube, racking arm,

•  Cat walks for 100HL-300HL Fermenters

• All tanks can be custom design and produce as per your special request,

• If you have any demands, please send us inquiry directly, we will send you the detail technical proposal with best price.

•
