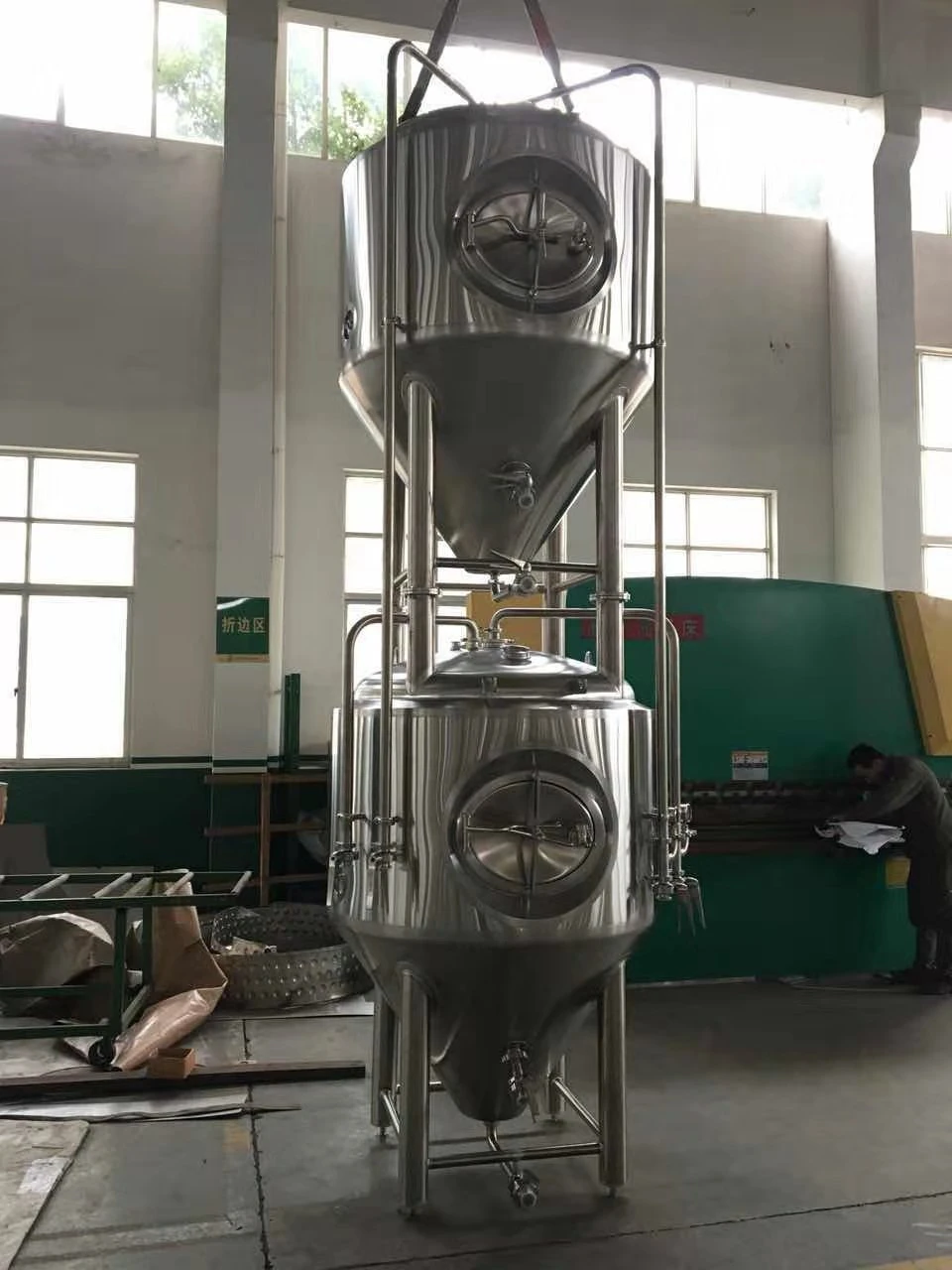

10 HL Stacked fermenter

· Fermentation tank

· Product description: Material: stainless steel 304 We can design and produce all the tank according to customer’s detail request.

1.       Brushed Stainless Steel 304

2.       Dimple plate Jacketed Cooling; Dual cooling zoned;

3.       Working volume 10HL, with  25% head space.

4.       Thickness of insulating layer: 80mm;Inner Body Thickness: 3mm; outer shell thickness: 2mm;

5.       Side man way; Tank top have hops dosing port, CIP rotary spray ball; Pressure gauge;

6.       Inner tank mechanical polishing ≦0.6μm; working pressure is 1bar; Sampling valve, breather valve, etc.

7.       Out Plate protection welding line Belt Sander Polished on welds;

With valves and accessories matched.
