300HLAlcohol/Ethanol storage tank

Part I-300HL 95% Ethanol storage tank

1

Top dished, Cylindrical body, bottom cone

Net volume

300 HL

Gross Volume

330 HL

Shell Diameter

2200 mm

Shell Height

10000 mm

Working pressure

15ps

Design pressure

15ps

Working temperature

4°C

Design temperature

-5~30°C

Material

95% Ethanol

Material：

Tank Body

304ss

Jacket

304ss

Support leg

304ss

Top man way

DN450

Cooling jacket

3 corrugated laser welded jackets on shell

1 dimple laser welded jackets on bottom cone

Jacket working pressure

3 Mpa

Jacket design pressure

4 Mpa

Jacket area

15 m2

Material temperature in jacket：

-4℃

Polishing and surface

Inner surface

Top dished head

Ra≤0.8μm

Tank Shell

Ra≤0.8μm

Inner welded seam

Ra≤0.8μm

Bottom Cone

Ra≤0.8μm

Top Dished head

1

Material

304ss

Thickness

5 mm

Shell

1

Material

304ss

Thickness

3/4 mm

Cone

1

Material

304ss

Thickness

6mm

Angle

140°

External surface

Welding seam pickled and passivated and cleaned

Insulation

Insulation material:

polyurethane foam

PU density:

≥40 kg/m3

PU thickness:

100 mm

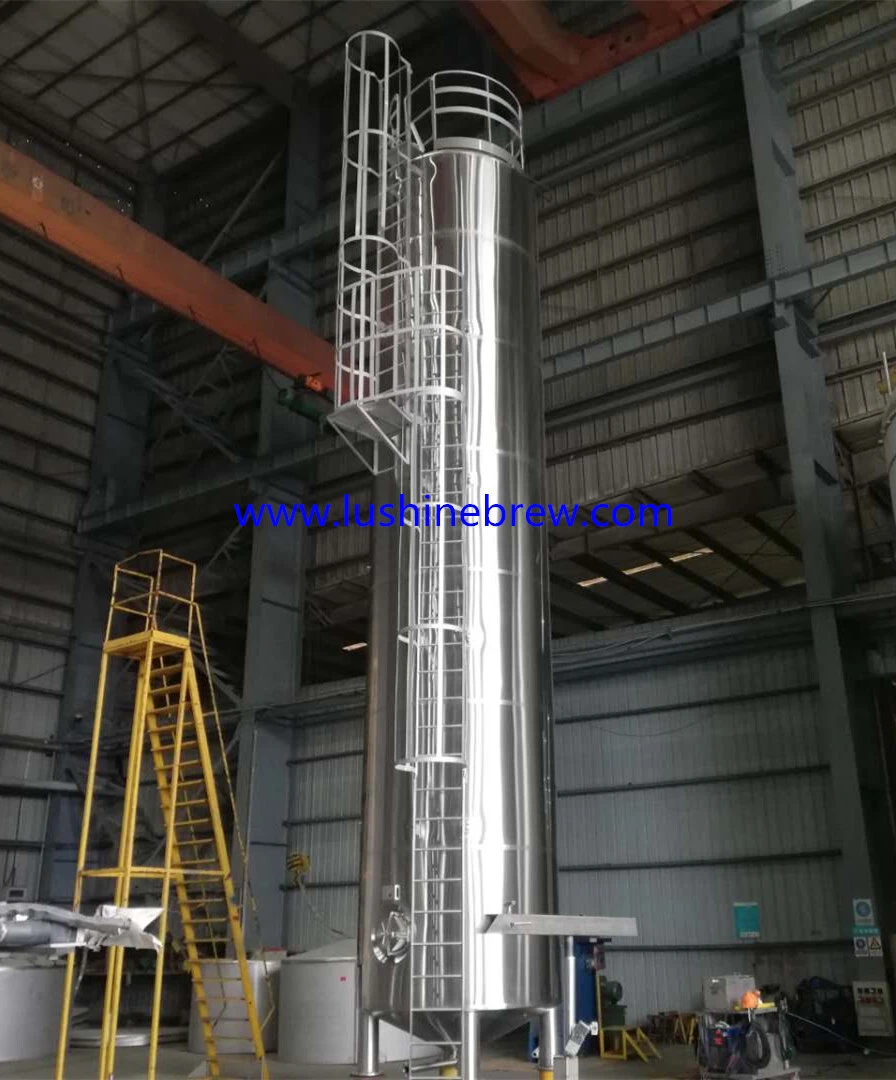

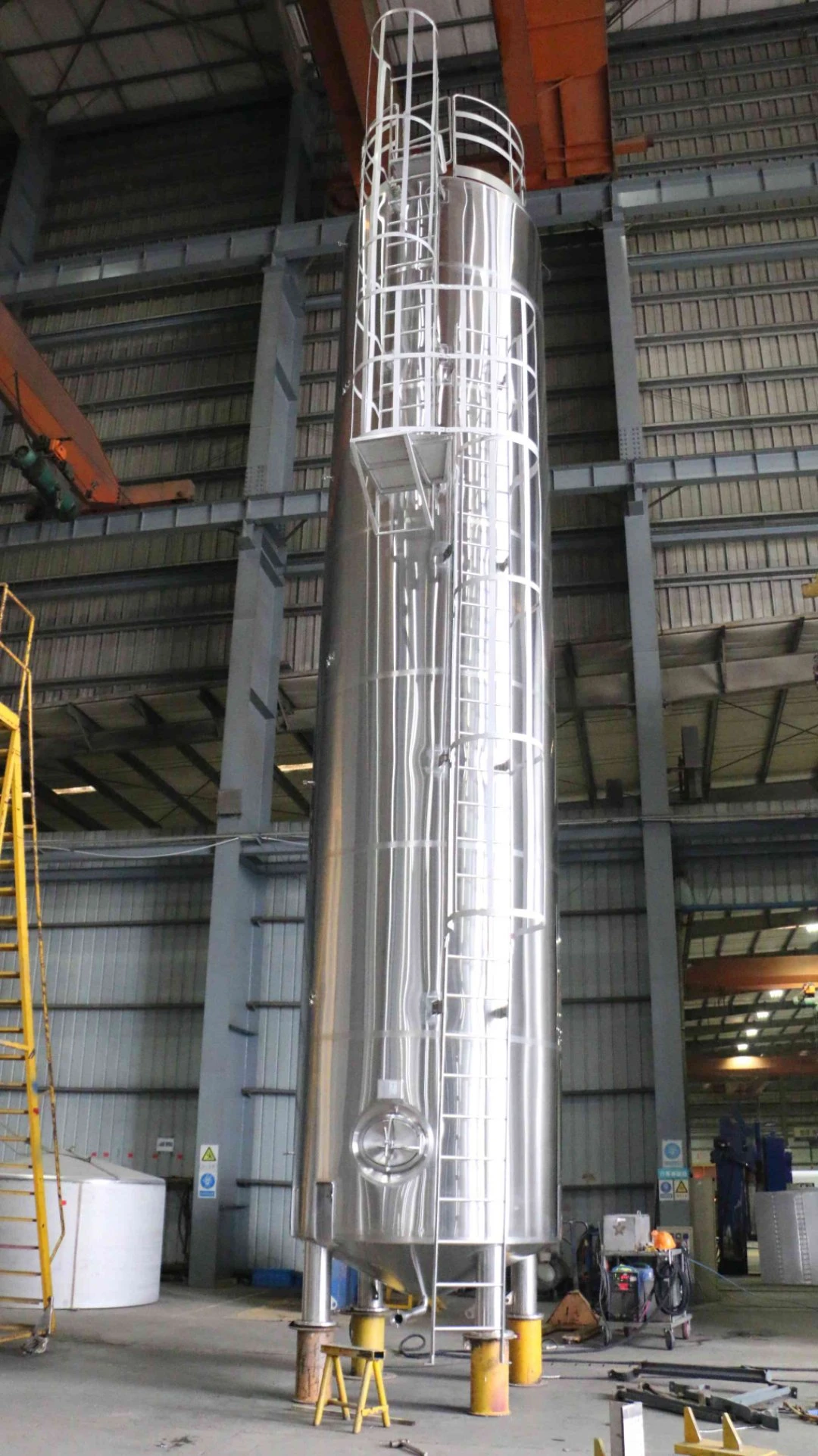

Part II–Tank with working platform and ladders　

1
