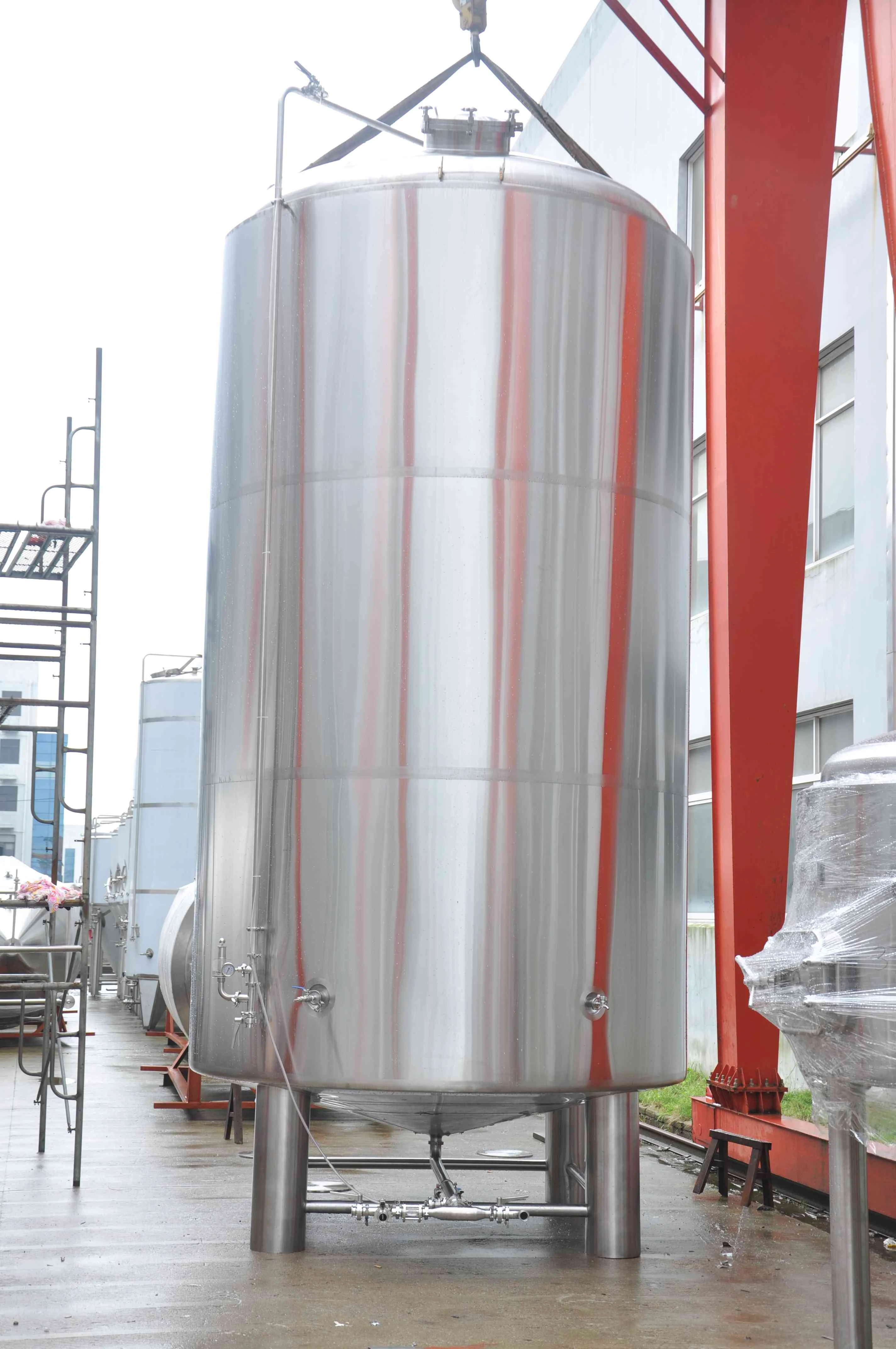

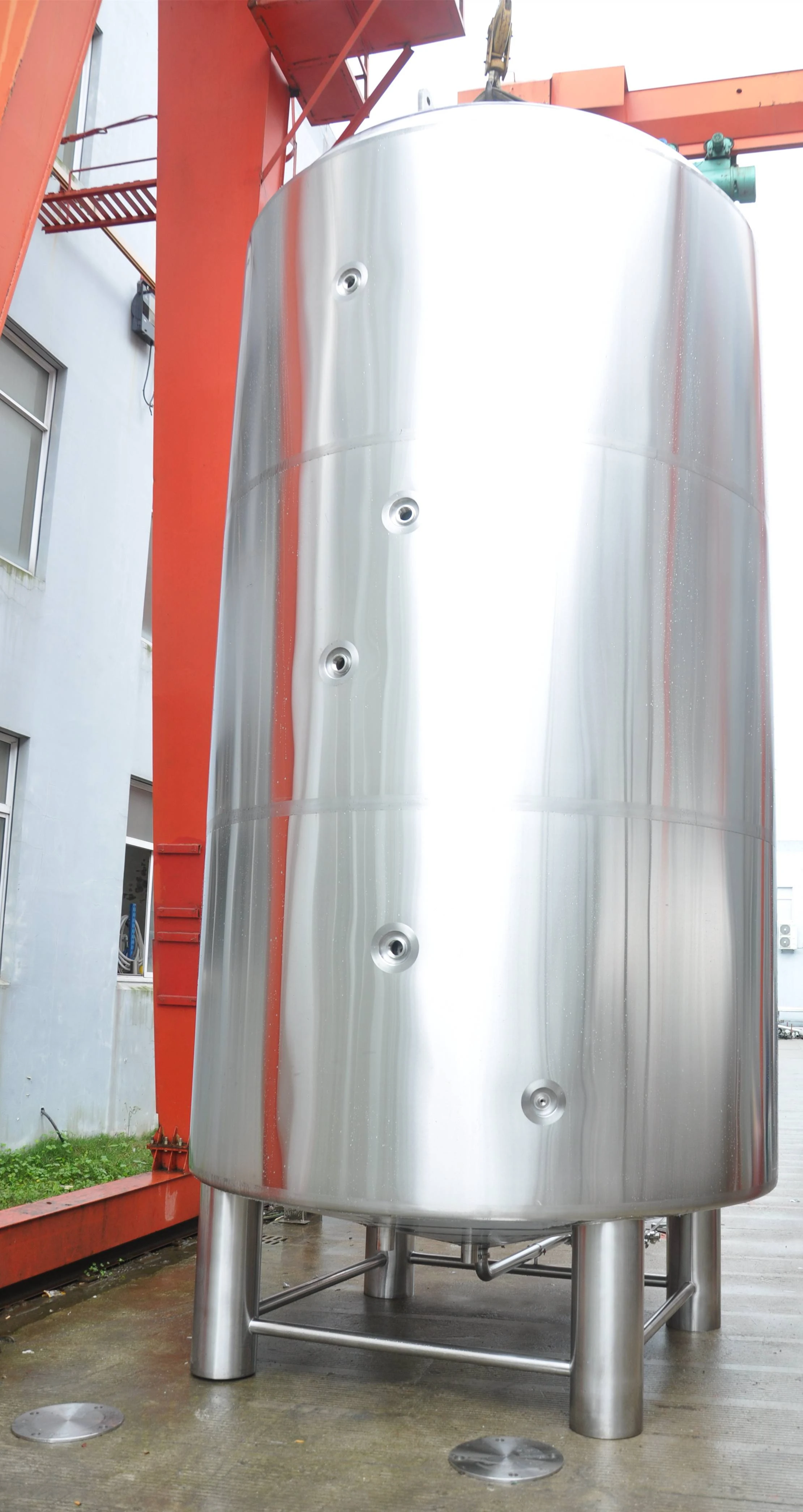

200HL Bright beer tank

Bright beer tank also called Brite Tank or beer storage tank

Product description: Material: Inner tank is Sanitary Stainless steel 304, tank outside cladding can be 304ss or stainless steel material corrugated plate.

Material: Sanitary Stainless steel 304,

Effective capacity: 200HL; total volume: 220HL,

Tank top and bottom are dished heads; dished head thickness 5mm.

• Domed top and cone bottom cone, cone angle: 60-90 degree

•  With 25% head space for fermentation

•  Tank Wall thickness 4mm,

•  Pressure: 2-3 bar / 15-30PSI

•  Dimple plate cooling jacket, cylinder and bottom cooled, Polyurethane insulation

•  Four adjustable legs, with leg bolts

•  Diaphragm pressure gauge with CIP arm

•  Top: with CIP arm, breathe valve.

•  Cylinder: Glycol inlet / outlet, side man way, PT100,sample valve, level tube (optional)

•  Bottom: Racking arm (optional), bottom beer / yeast outlet, glycol inlet / outlet, CO2 carbonation stone

•  Connection size depends on tank size

Optional:

• German  Kieseman brand pressure regulator/bunging valve

•  Level tube, racking arm,

• With  Step ladder and working platform on top of tank
