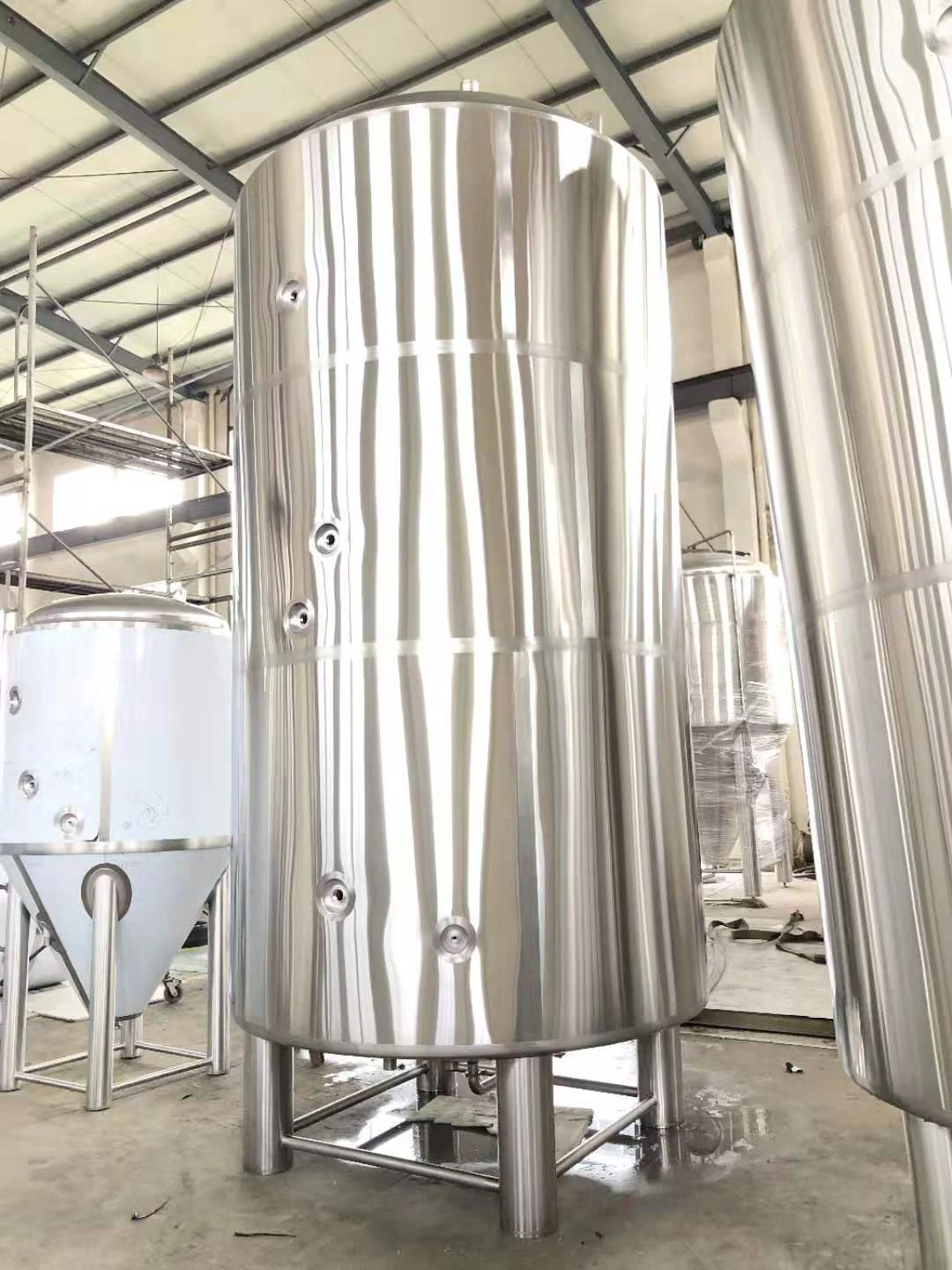

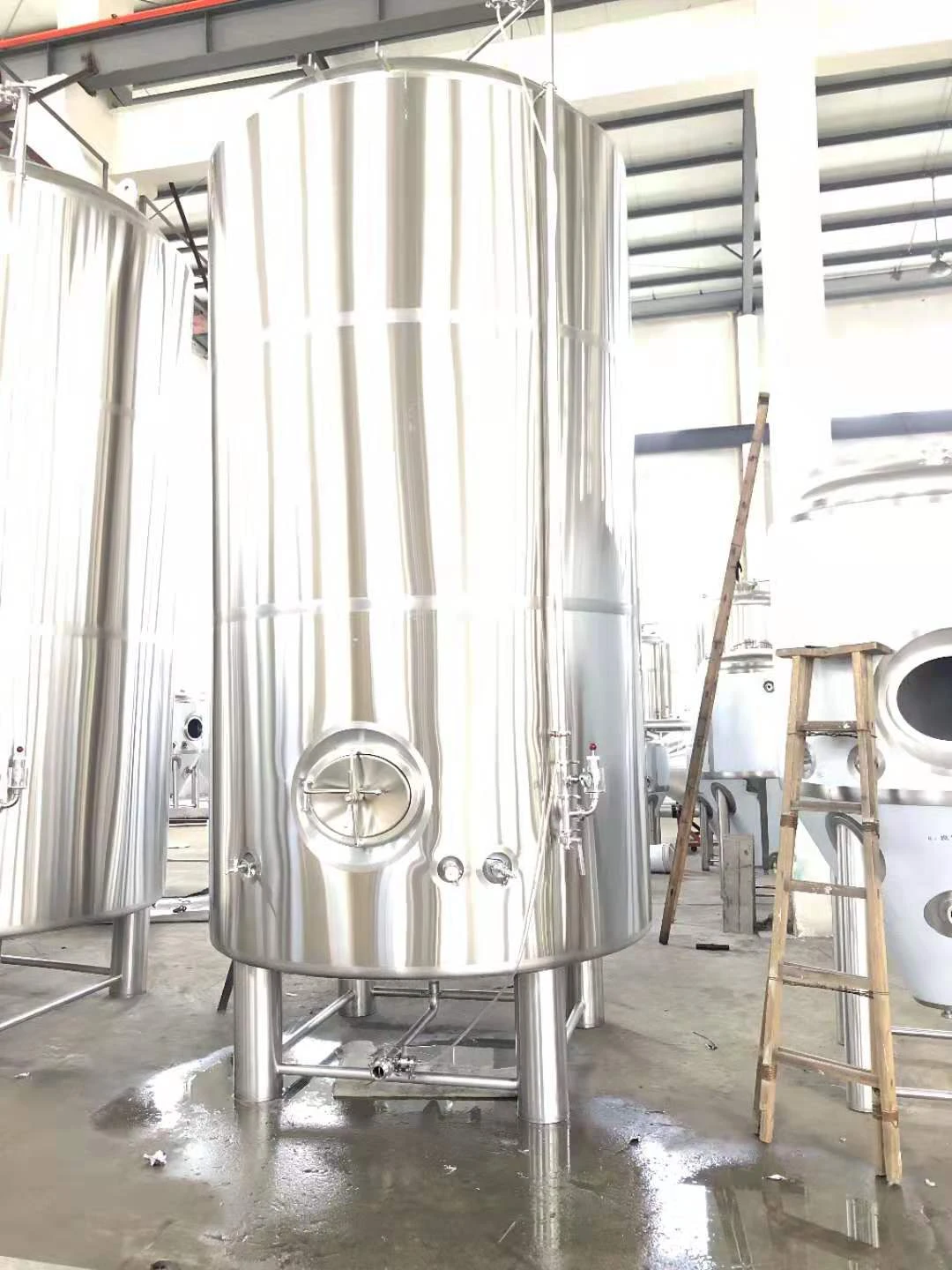

100HL BBT

· Brite tank

· brewing equipment

· Product description: Materiel is the SUS 304sanitary stainless steel.

Effective volume - 100HL,

The top adopts stainless steel dished head. It is 100% TIG welded with polishing.

Design pressure - 0.2MPa, test pressure - 0.4MPa.

It has four heavy stainless steel tripods with adjustable height and horizontal stand.

The inner wall thickness is 3mm, and it use polyurethane foam to preserve heat, the insulation thickness is 80～100mm, and the outer insulation thickness is 2 mm.

The inner and outer surfaces are all cleaned and polished, the inner surface - 2B base material to 0.4um.

Configure the appropriate standard and model of sanitary clamp connector according to the tank specification.

It is configured with vacuum valve/decompression valve, pressure gage, thermometer, sampling valve, lifting legs, side or top inspection manhole, 360° omnibearing cleaning CIP sprayer.

Double-deck glycol entering and outing cooling connector, and the refrigerant jacket is made from welded honeycomb panels.

Feed outlet with valves and fittings.

Digital thermometer sensor interface.

Carbon dioxide inflating device
