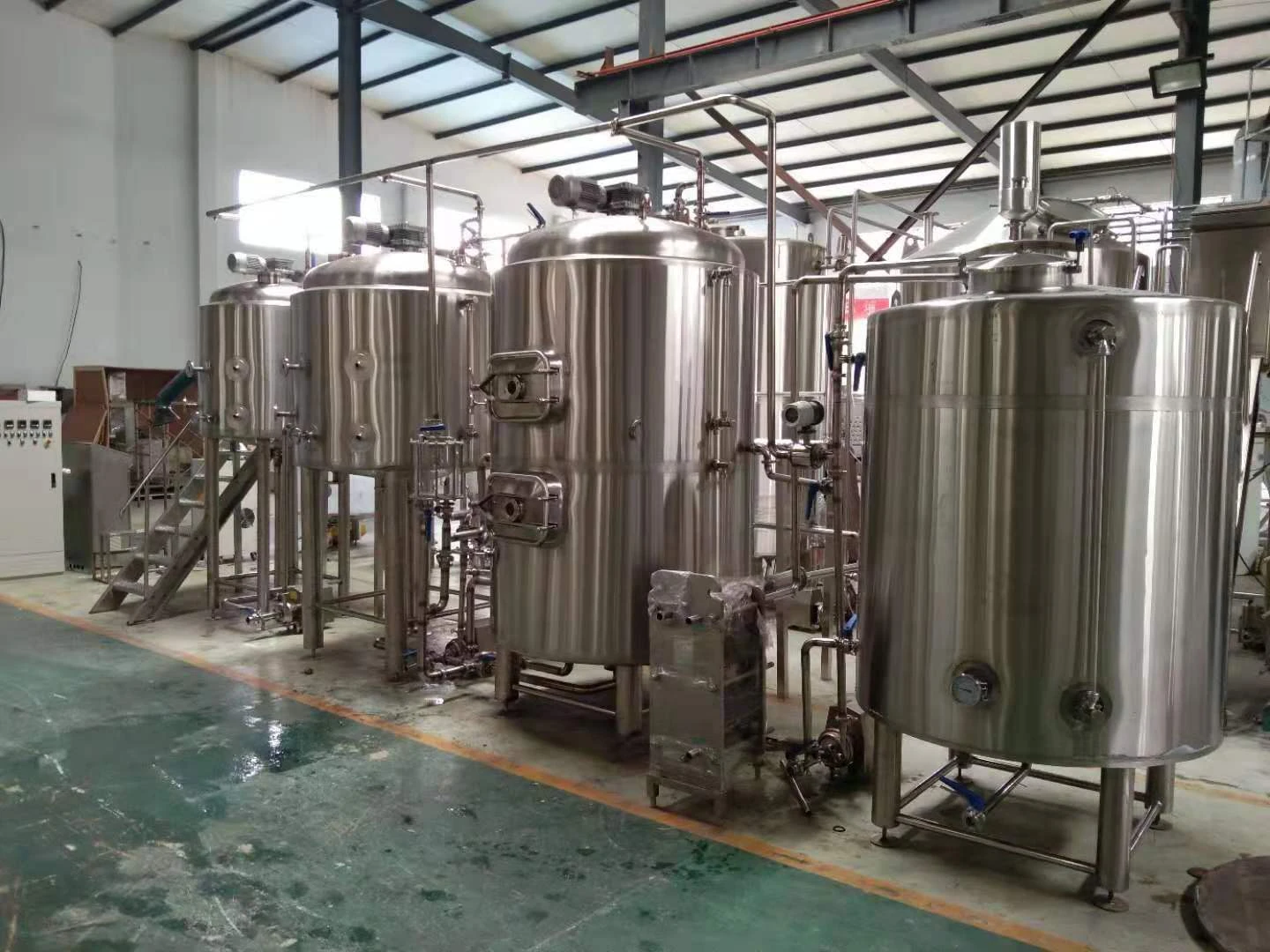

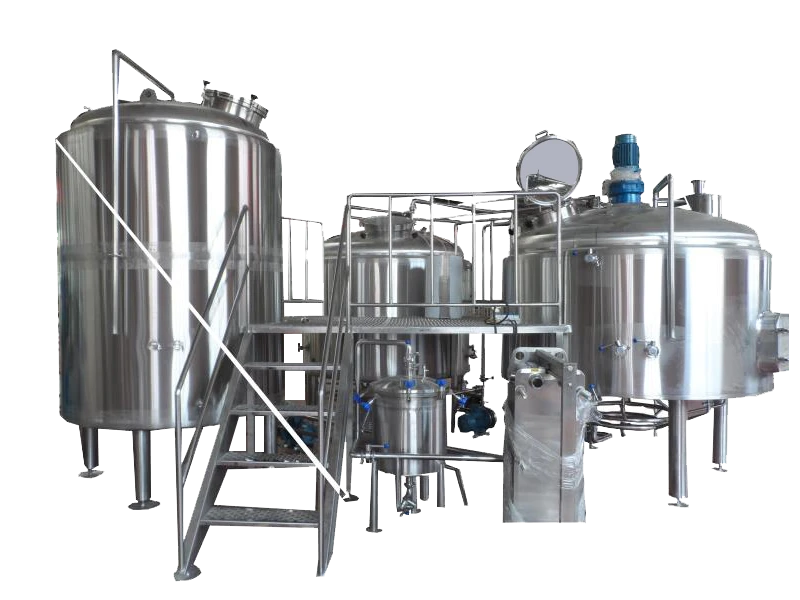

15 HL Brew house

General description:

Capacity: 5HL, 10HL, 15HL, 20HL Or 5BBL 7BBL 10BBL 15BBL or customized

Two vessels, three vessels, four vessels brew house are all available.

Material: SUS304.

Heating method: steam jacket heating or gas fired

Efficiency: 1-3 Brews per day

Basic configuration:

• Mash / lauter tun with top or bottom blade stir, counter washing and wort collect coil

•  Kettle / whirlpool with tangent inlet, electric heater inside tank, steam jacket or gas chamber underneath.

•  Support fittings: double / single stage plate cooler, piping strainer, grist hydrator, wort grant tank, hops dosing tank, etc

•  Standard brewhouse platform or customized

•  All pump with VFD, all pump motors ABB brand or UL certificated.

•  With hot water tank configured for sparging and mashing in etc.

•  Valves to be manual butterfly one or pneumatic

•  Piping connection to be TC or DIN.

•  Hot water tank to be 2-3 times bigger for mashing, sparging and cleaning

Features:

• Reasonable water blending unit for temp and water amount control

•  Well sized tank diameter to guarantee right filtration are for wort extract

•  Lower energy cost and material consumption

•  Wort grant creating more buffer during lautering

•  Special tank and piping construction to avoid the wort aeration problem and decrease the material lost

•  Whole brew house unit can be installed on frame
