1200L Beer Brew house
Micro brewery equipment is well-suited for craft brewers who want to produce high-quality, small-batch beers with precision and creativity. Whether you're a homebrewer looking to scale up your operation or a professional brewer starting a small brewery, microbrewery equipment provides the tools and flexibility needed to produce unique and delicious craft beers.
Inquiry
Add to Basket
Device description

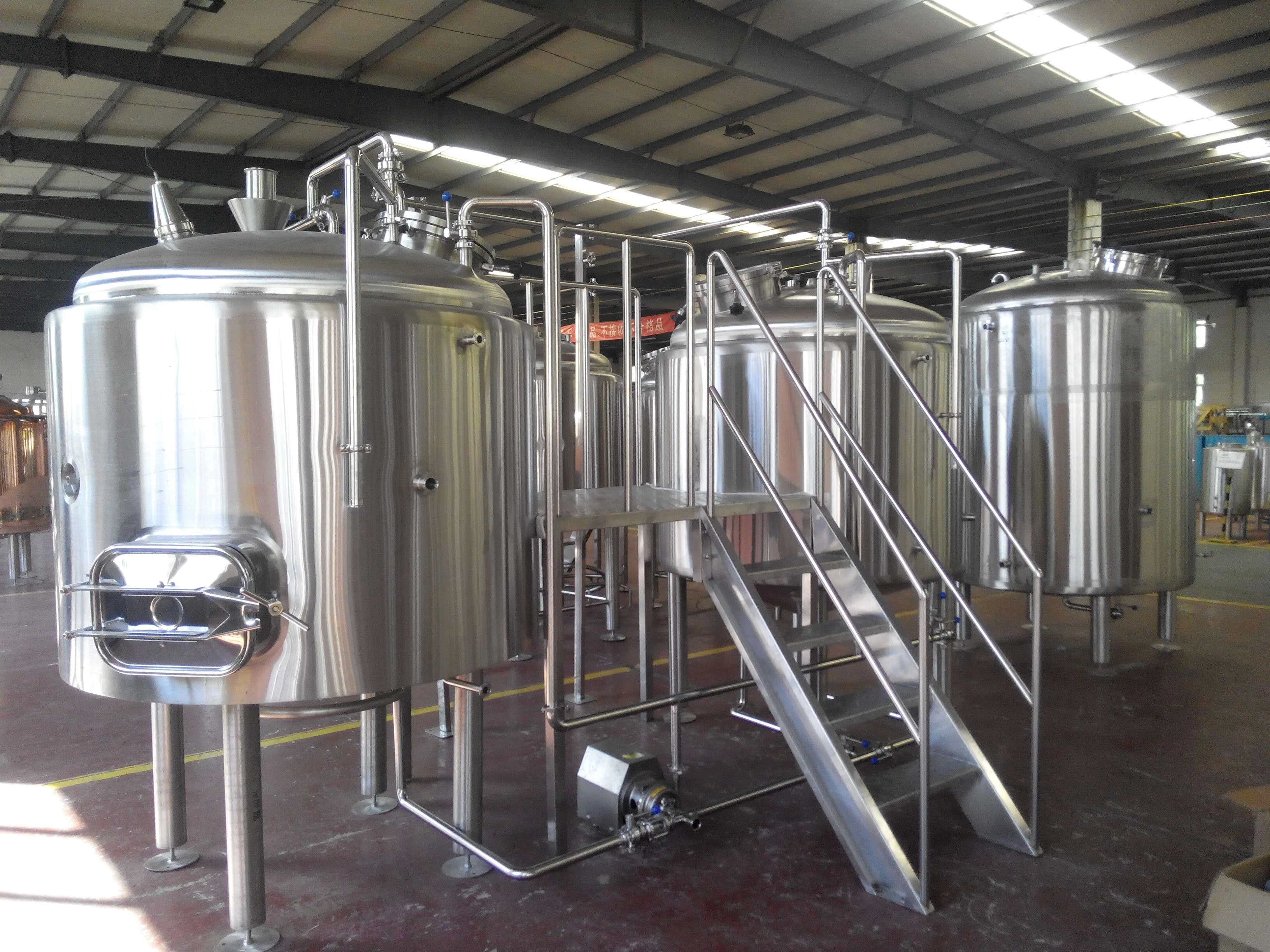

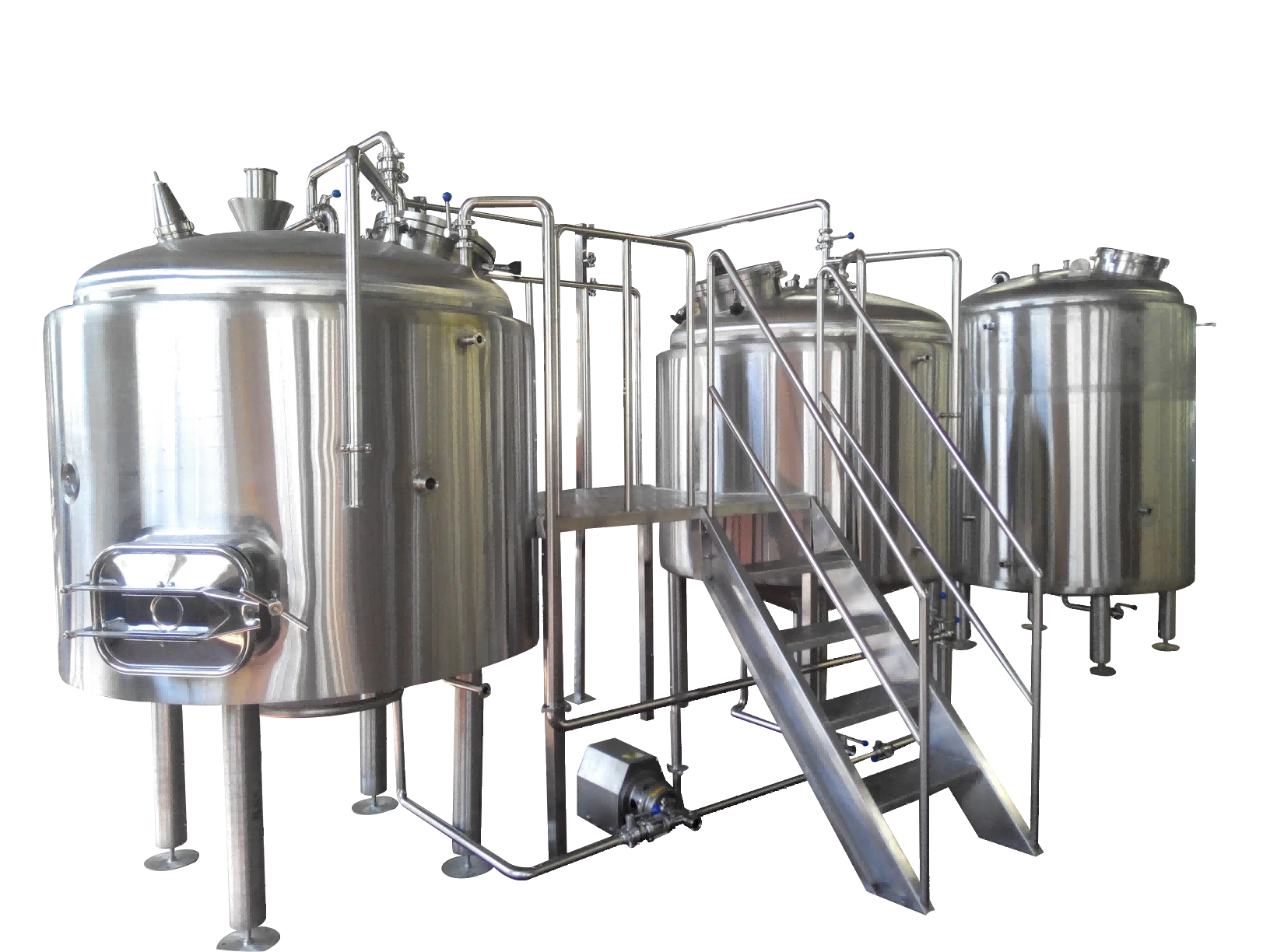

1200L Beer Brew house Equipment

General description:

Capacity: 5HL, 10HL, 15HL, 20HL Or 5BBL 7BBL 10BBL 15BBL or customized,

Lushine proffessinal team will provide you with a detailed brewery layout and includes all heating, refrigeration, pumps, valves, pipe-work and controlsWe offer steam-powered, direct fire, and electric brewhouses in 2, 3, 4, and 5 – vessel configurations. If you’ve never started a brewery before, we’re here to help. If you’re an experienced brewer, just contact us directly.

Capacity:
Volume of wort per batch  200L - 2000L


Material: SUS304,

Heating method: steam jacket heating or gas fired

Efficiency: 1-3 Brews per day


Basic configuration:

  •  Mash / lauter tun with top or bottom blade stir, counter washing and wort collect coil

  •  Kettle / whirlpool with tangent inlet, electric heater inside tank, steam jacket or gas chamber underneath.

  •  Support fittings: double / single stage plate cooler, piping strainer, grist hydrator, wort grant tank, hops dosing tank, etc

  •  Standard brewhouse platform or customized

  •  All pump with VFD, all pump motors ABB brand or UL certificated.

  •  With hot water tank configured for sparging and mashing in etc.

  •  Valves to be manual butterfly one or pneumatic

  •  Piping connection to be TC or DIN.

  •  Hot water tank to be 2-3 times bigger for mashing, sparging and cleaning


Features:

  • Reasonable water blending unit for temp and water amount control

  •  Well sized tank diameter to guarantee right filtration are for wort extract

  •  Lower energy cost and material consumption

  •  Wort grant creating more buffer during lautering

  •  Special tank and piping construction to avoid the wort aeration problem and decrease the material lost

  •  Whole brew house unit can be installed on frame.


  • We can customize design & manufacture each set beer brewing equipment according to your requirements!

  • Send Inquiry to us for more information!
