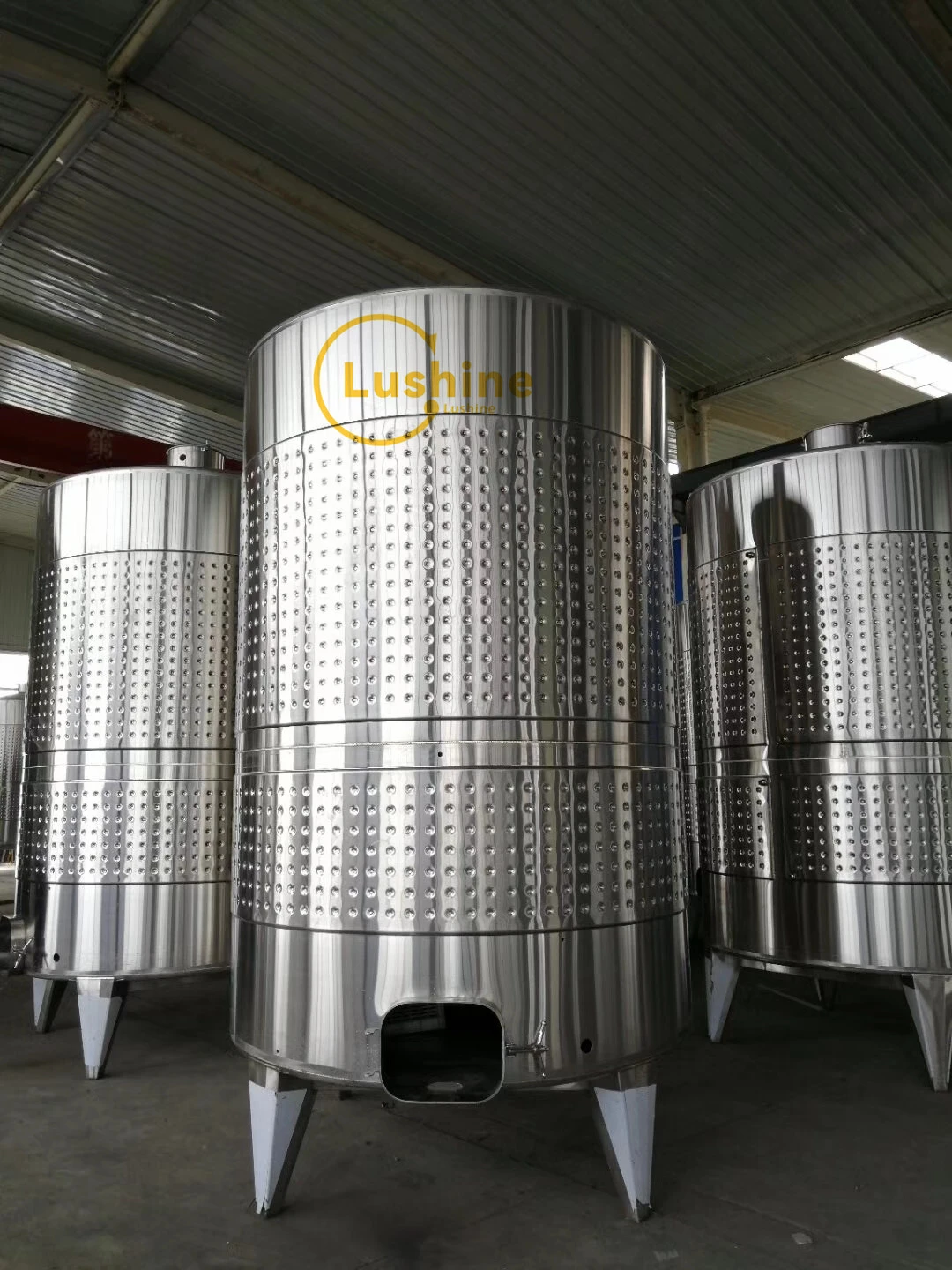

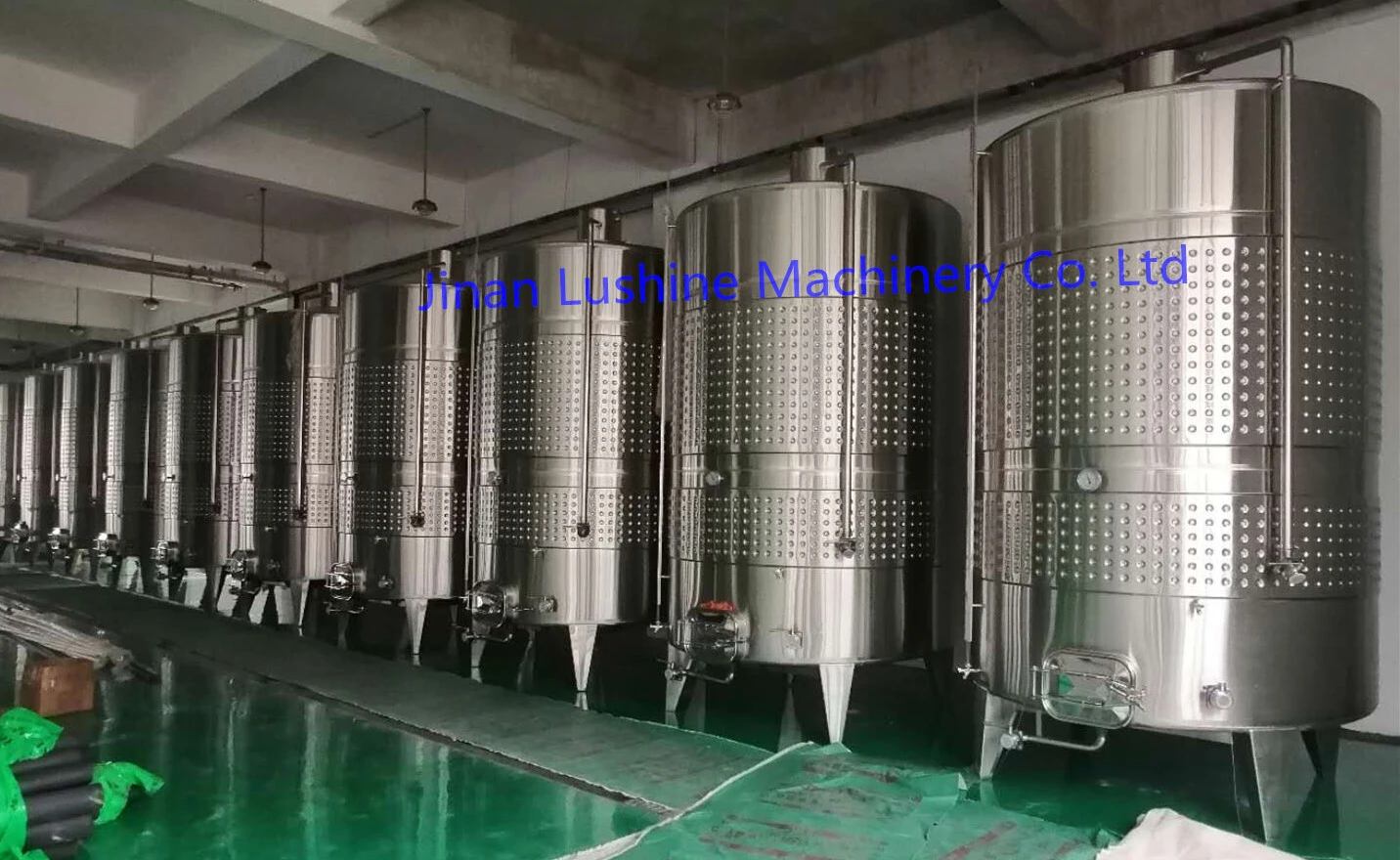

Grape wine fermentation tanks for sale

Function:Fermenting grape

1)Tank volume: 500L-120,000Liter

2)Dimension: Diameter and height according to the requirement

3)Material: Stainless Steel (304-2B or 316L-2B)

4)Cooling jacket:Ensure precise temperature control with our dimpled,Thickness is 1-2mm

5)Tank shell thickness: 2mm or more (according to the design or customer required)

6)Head:Top head and bottom head are cone type.

7)Bottom with auto unloading device.

6)Tank support Leg:4 pieces.

7)Pressure (MPa): Atmospheric pressure-Middle pressure (According to the Chinese Design standard)

8)Design temperature C-degree: -5-80

9)Medium: Various drinks including red wine, white wine and so on.

10Tank surface: The original surface of the stainless steel plate (or polishing if required)

11) 12)agitator: Top sid or side with agitator.

12) General accessories(If required): Manhole, CIP, respirator, sight glass, mixing,therm wells and temperature gauges.

13) With Quick open manhole, 360 degree rotation CIP spraying ball, Sanitary breathing cover, Adjustable triangular legs,dismountable materials input pipe assembly, Mixer: Paddle; Frame; Impeller, Be Vertical or Horizontal to choose; (Top, bottom side & bottom, etc. places to set the mixer)

PU foam Insulation,Thermometer , Liquid level meter & ladder (According to customer requirements)

Other accessories can make according to customer's special requirements.

14) Guarantees inner quality and safety, good looking appearance and function by introducing international advanced large-sized equipment of pulse plasma arc welder and auto polishing machines and cooperating with international famous finished.

Advantage:

· High-Quality Construction: This 10000 liter jacketed stainless steel wine fermentation tank is made from high-quality stainless steel 304, ensuring durability and resistance to corrosion, ideal for long-term use in wineries and food & beverage factories.

· Easy Operation: The tank features a user-friendly design, making it easy to operate, allowing customers like you to efficiently manage the fermentation process with minimal training required.

· Certified and Reliable: This product meets international standards with ISO and CE certification, ensuring compliance with global regulations and industry standards.

All tanks can be custom design and produce as per your special request, if you have any demands, please send us inquiry directly, we will send you the detail technical proposal with best price.
