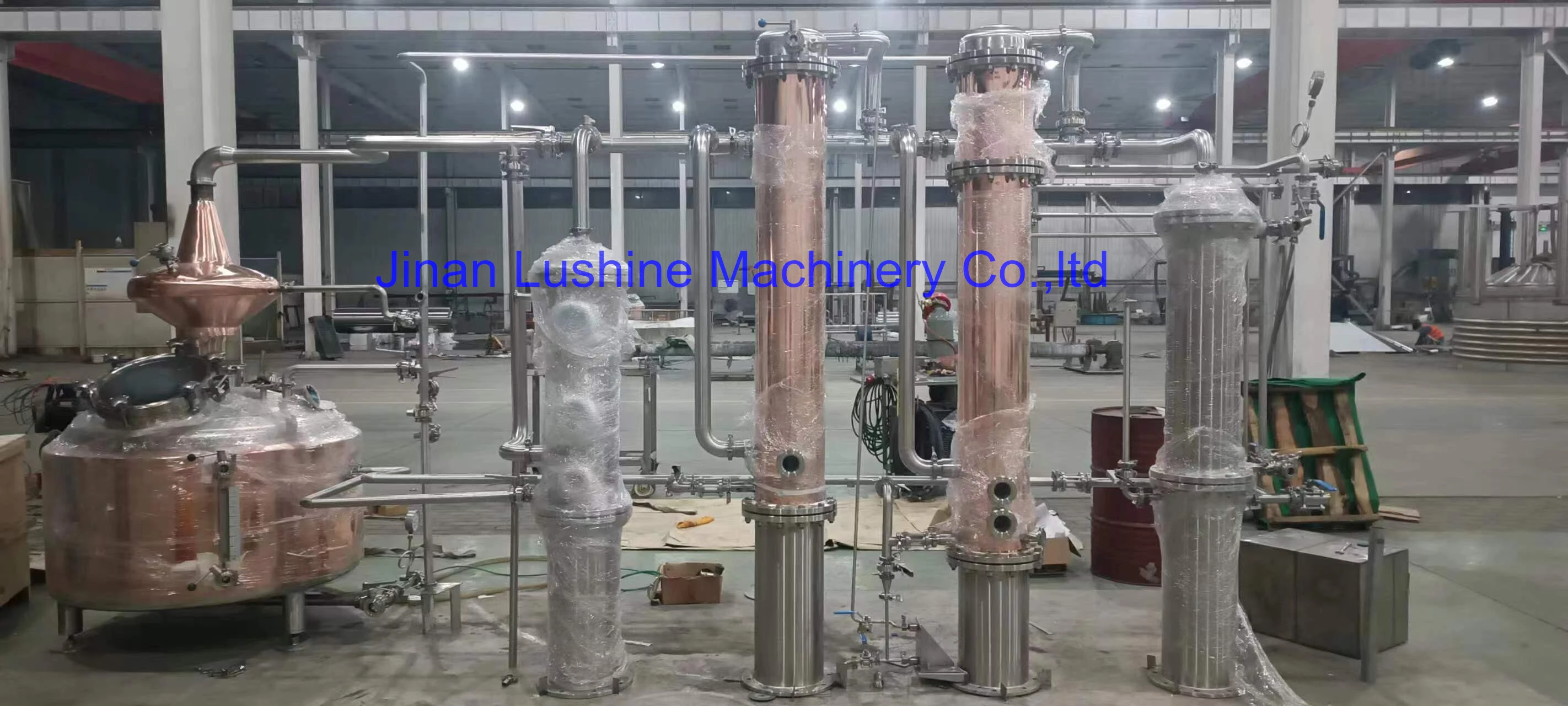

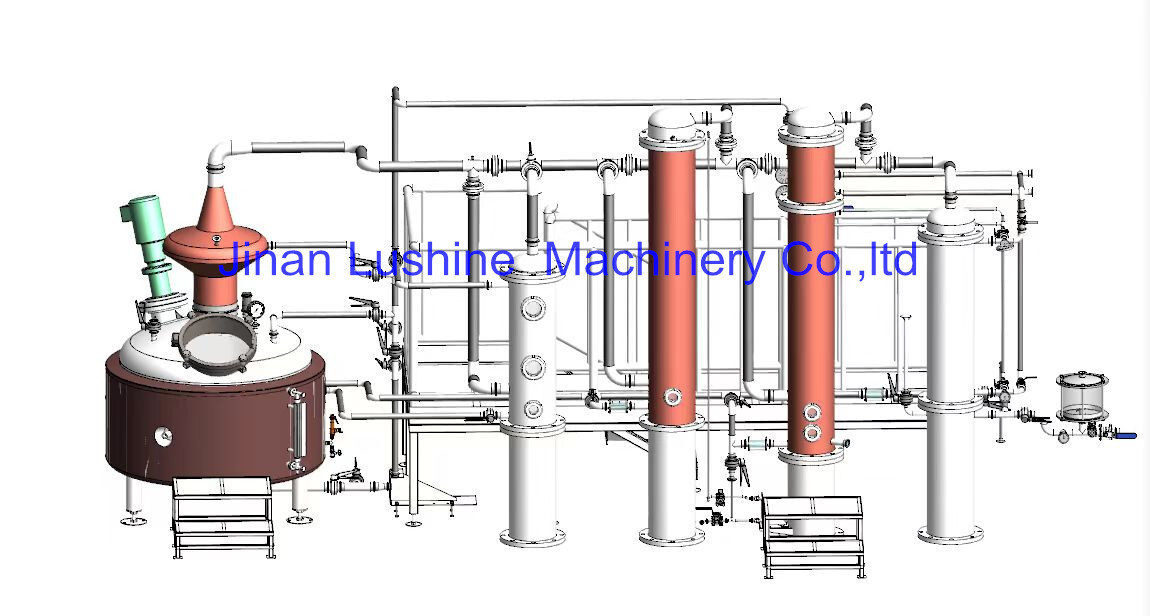

The 500L distilling system is suitable for craft distilleries producing a variety of spirits such as whisky, gin, and vodka.This single unit consists of a pot that is a combination of red copper ,glass and copper column,dephlegmator and condenser,heated by steam or electric.

Main Technique Parameters :

---Still Pot:

1. Volume: 500L.

2. Inner Pot: TP2 red copper, thickness 3mm.

3. Dished Head: TP2 red copper, thickness 3mm.

4. Outer Shell: SUS304 stainless steel, fish scale plate, thickness 2mm.

5. Jacketed: 50mm insulation.

6. Heating Method: 1KW, (415V/50hz/3ph electric heating rods).

7. Accessories: φ250 manhole, level gauge, pressure relief valve, thermometer, sight light, etc.

---Copper Head:

1. Material: TP2 red copper, thickness 3mm

---Material Separator:

1. Material: TP2 red copper

---Distillation Column:

1. Material: TP2 red copper, thickness 3mm

2. Size: Φ152

3. Features: 4 bubble trays, 5 sight glasses, attached reflux device, thermometer.

---Dephlegmator:

1. Material: TP2 red copper, thickness 3mm

2. Size: Φ152

3. Features: Cooling water inlet and outlet, thermometer.

---Condenser:

1. Material: SUS304 stainless steel, thickness 3mm

2. Size: Φ152

3. Features: Cooling water inlet and outlet, thermometer.

---Stainless Steel Bracket:

1. Includes: 1*30L collection bucket

---CIP Cleaning Pump:

For convenient cleaning of the equipment.

---Alcohol Pipeline:

1. Material: TP2 red copper, thickness 1.5mm.

---Wine Mouth:

1. Material: TP2 red copper with glass

Technical Features

1. High-quality Materials: TP2 red copper and SUS304 stainless steel ensure corrosion resistance and stability.

2. Efficient Heating: Interlayer steam heating ensures uniform heat distribution and improved distillation efficiency.

3. Multiple Bubble Trays: Ensures effective separation of impurities during distillation, enhancing the quality of the distilled

spirits.

4. Insulated Jacket: 50mm insulation layer reduces heat loss and improves energy efficiency.

5. Safety Accessories: Includes pressure relief valve, thermometer, and other safety components to ensure safe operation.

Main Features:

1.Easy to operate and use, easy to clean and occupies a small area.

2.High safety, high work efficiency, long service life, low energy consumption, good quality and low price.

3.Provide customized services, technical and drawing support

4.Can steam heating, electric heating (direct and indirect type) or direct fire heating

5.Apply to whiskies, gins, tequilas, rums and bourbons etc

6.Efficient CIP spraying ball for 360-degree cleaning.

7.Explosion proof motor, be CE, UL, approved

We can custom design and manufacture each set distillery equipment as your special request,

If you have any demands, please send us inquiry directly, we will send you the detail technical proposal with best price.
