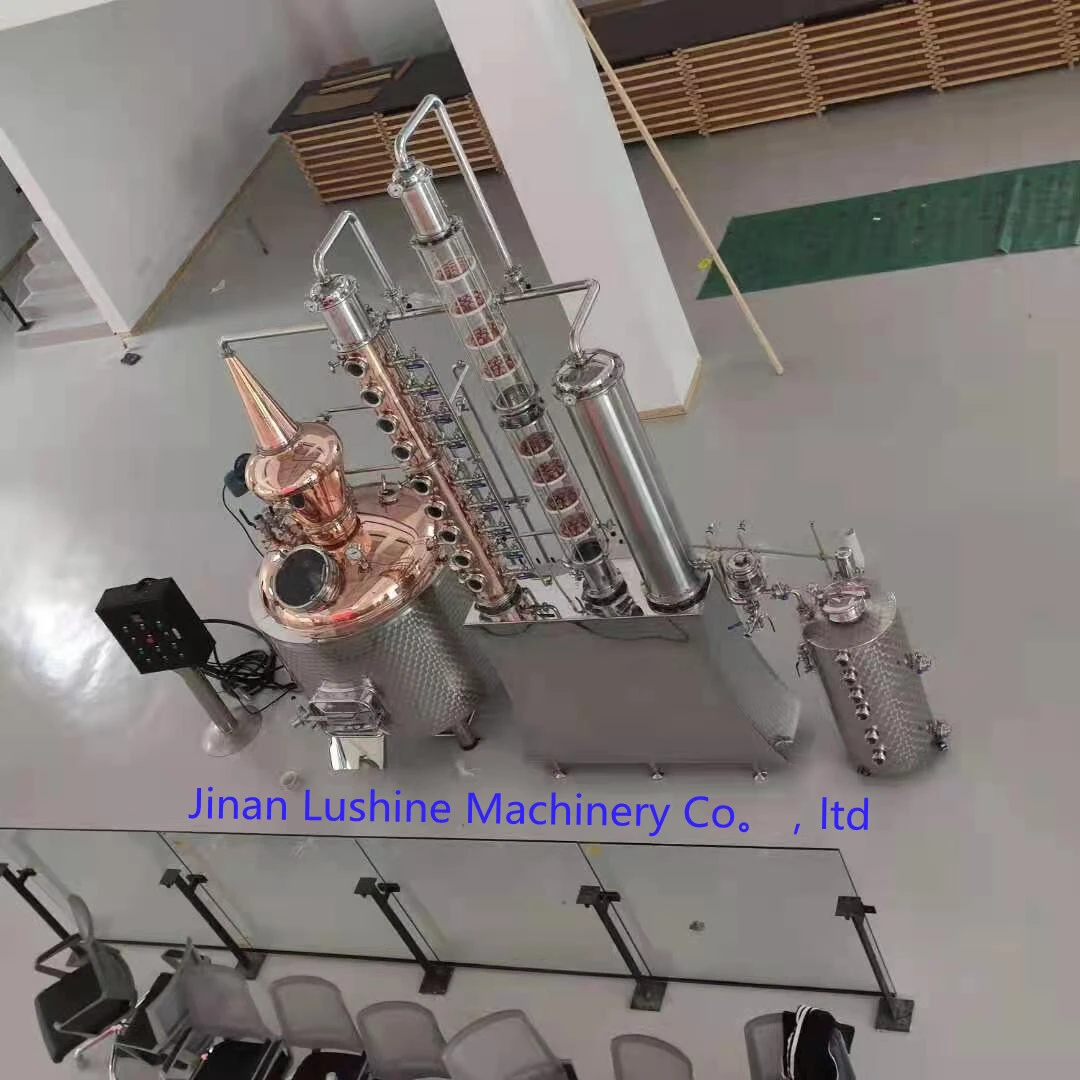

200L Whisky,Gin, Vodka Distilling Equipment

A 200L distillery equipment setup generally refers to a smaller-scale distillation system used for producing spirits, such as Whisky , Brandy, rum, Gin, Tequila and Vodka. This capacity is often favored by craft or small-scale distilleries.

Configuration

1.Still Pot

Actual volume 250L, Working volume 200L

Inner pot: red copper T2, thickness: 3m, Dished head: red copper T2, thickness: 3m

Jacketed: SUS304, thickness: 4mm,Insulated: 50mm, PU

Stirring motor: explosion-proof mixer 0.37KW/46rpm(EX)

Outer shell: SUS304, thickness: 2mm,Temperature control: PT100

Heating method: 2*10KW electric heating rods.

With glass manhole, CIP cleaning ball, safety valve, sight light, steam trap, etc.

2.Still Column

Material: red copper T2, thickness: 3mm

Red copper tubes, each tray has bubble caps, and with CIP cleaning balls, Drain valve, thermometer

3.Dephlegmator

Material: Red copper T2, thickness:3mm,With cooling water inlet and outlet

4.Gin Basket,Material: SUS304, Size: 4″

Features: you can put plant spices, fumigate scented wine, such as gin

5.Condenser

Material: SUS304, thickness: 3mm,Size: 6″, 900mm

With cooling water inlet and outlet

6.CIP Pump

Category: Sanitary centrifugal pump,Power: 0.75KW (explosion-proof)

Flow rate: 3T/H, lifting head 24m,Working medium: water

Working temperature: 10-100℃

Features: Can clean the distillation kettle, copper head, column, gin basket

Material: SUS304, thickness: 2mm,

7.Multifunctional lockers

Control Box ,Material: SUS304, Sight light, motor, CIP pump

We can customize the Distilling Equipment according to your requirements!
