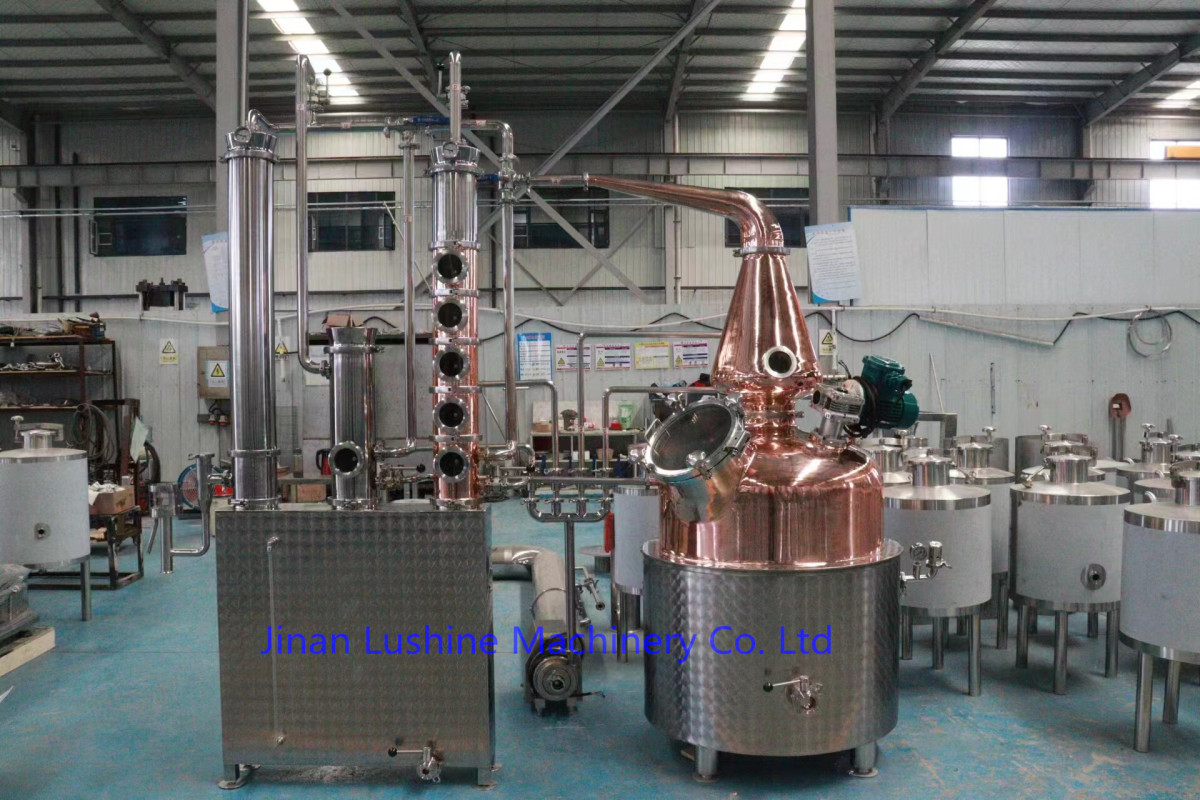

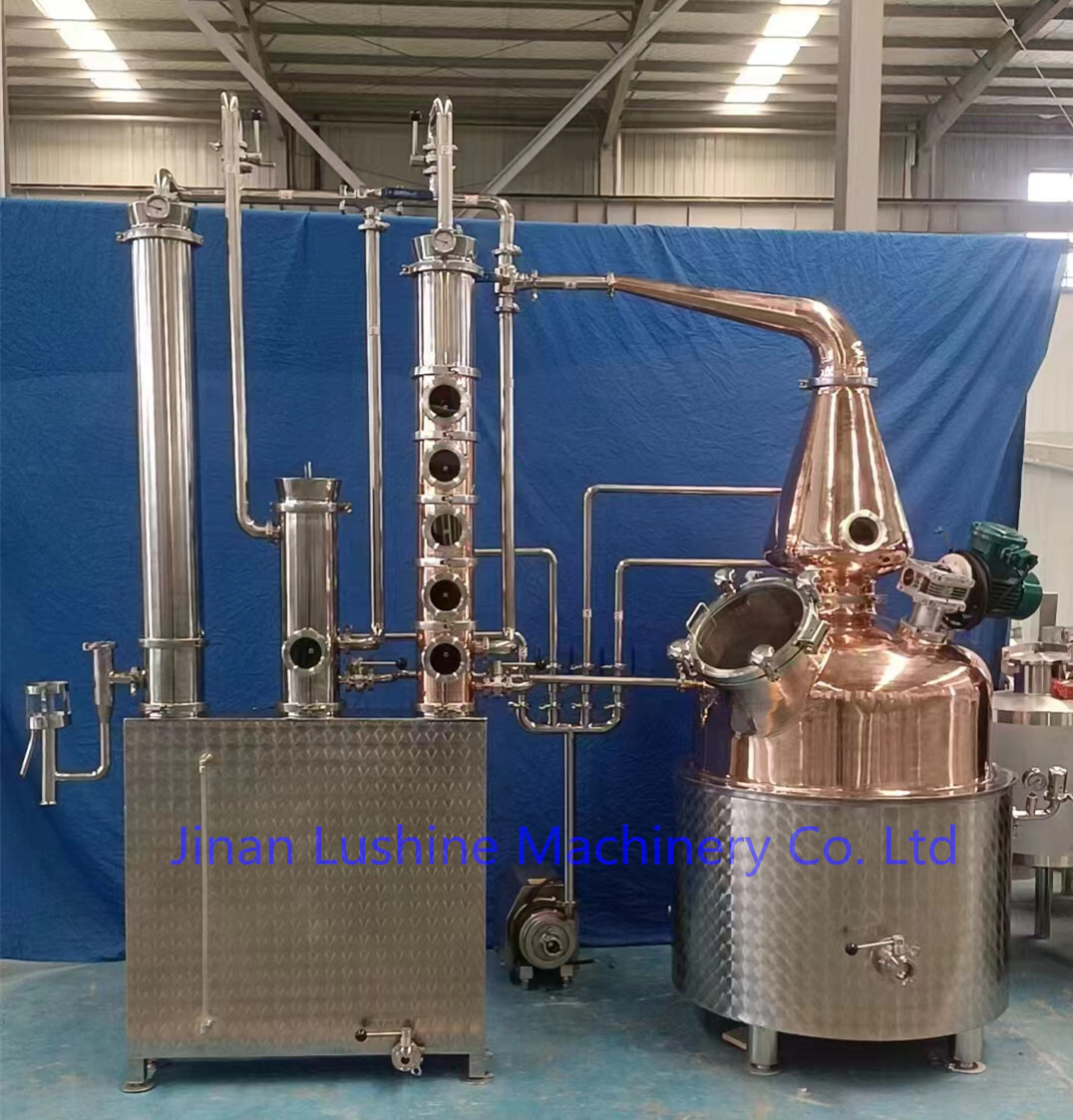

300L Whisky,Gin, Vodka Distilling Equipment

The 300L distilling system is suitable for craft distilleries producing a variety of spirits such as whisky, gin, and vodka.This single unit consists of a pot that is a combination of red copper ,glass and copper column,dephlegmator and condenser,heated by steam or electric.

Main Technique Parameters :

1.300L Red Copper Inner Pot with fish waves plate cladding.

2. Red Copper Onion Shape Brandy Helmet.

3. 200mm Diameter Glass Windows on the Copper Dome

4.Trays 6''(152mm Diameter) Copper Distillation Column with Copper Bubble Cap and Down comer on each plates.

5. Stainless Steel 6''(152mm Diameter) Dephlegmator on top of Column.

6. Stainless Steel 6''(152mm Diameter) Gin Botanical Basket.

7. 4''(102mm Diameter)Stainless Steel Tube and Shell Condenser.

8. Stainless Steel Support Desk with Fish waves Plate cladding.

9. With one 70L storage tank of medium Whisky inner the desk.

10. Parrot with Hydrometer(Spirits Safety).

11. With electric Control Box.

Main Features:

1.Is easy to operate and use, easy to clean and occupies a small area.

2.High safety, high work efficiency, long service life, low energy consumption, good quality and low price.

3.Provide customized services, technical and drawing support

4.Can steam heating, electric heating (direct and indirect type) or direct fire heating

5.Apply to whiskies, gins, tequilas, rums and bourbons etc

6.Efficient CIP spraying ball for 360-degree cleaning.

7.Explosion proof motor, be CE, UL, approved
